CP-20H HD Construction Tipper Trailer

Skip to product information
1 of 8

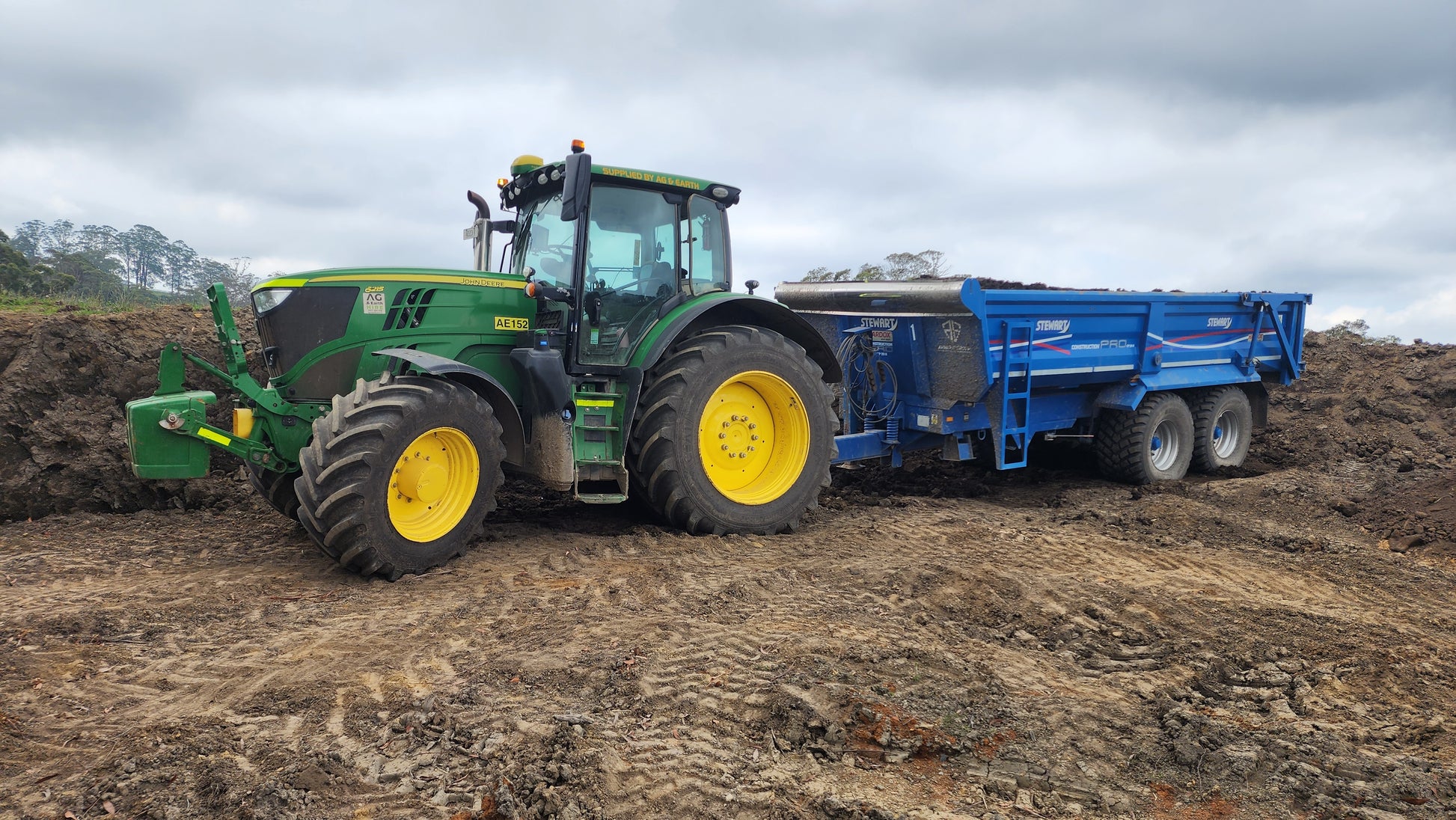

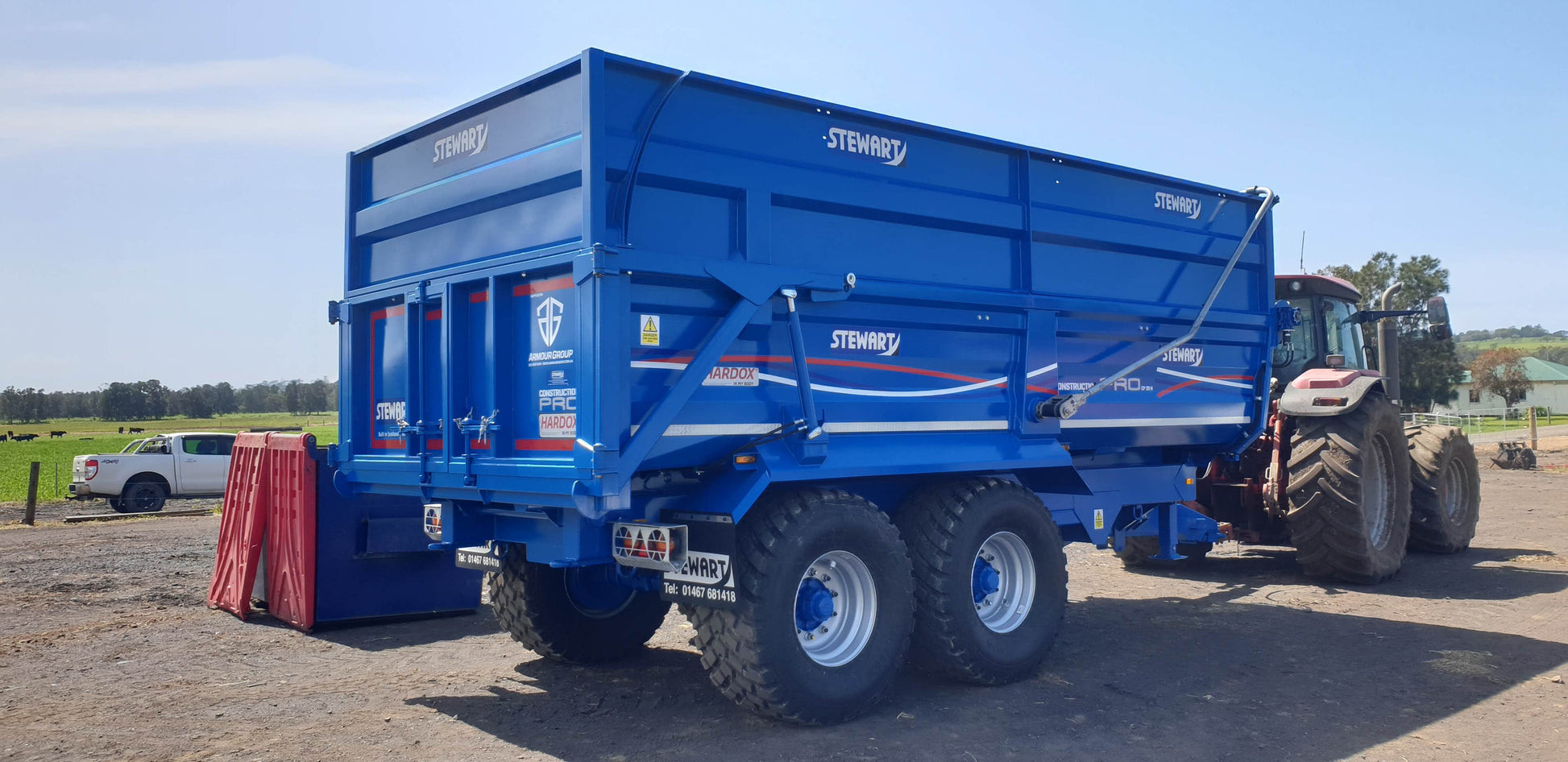

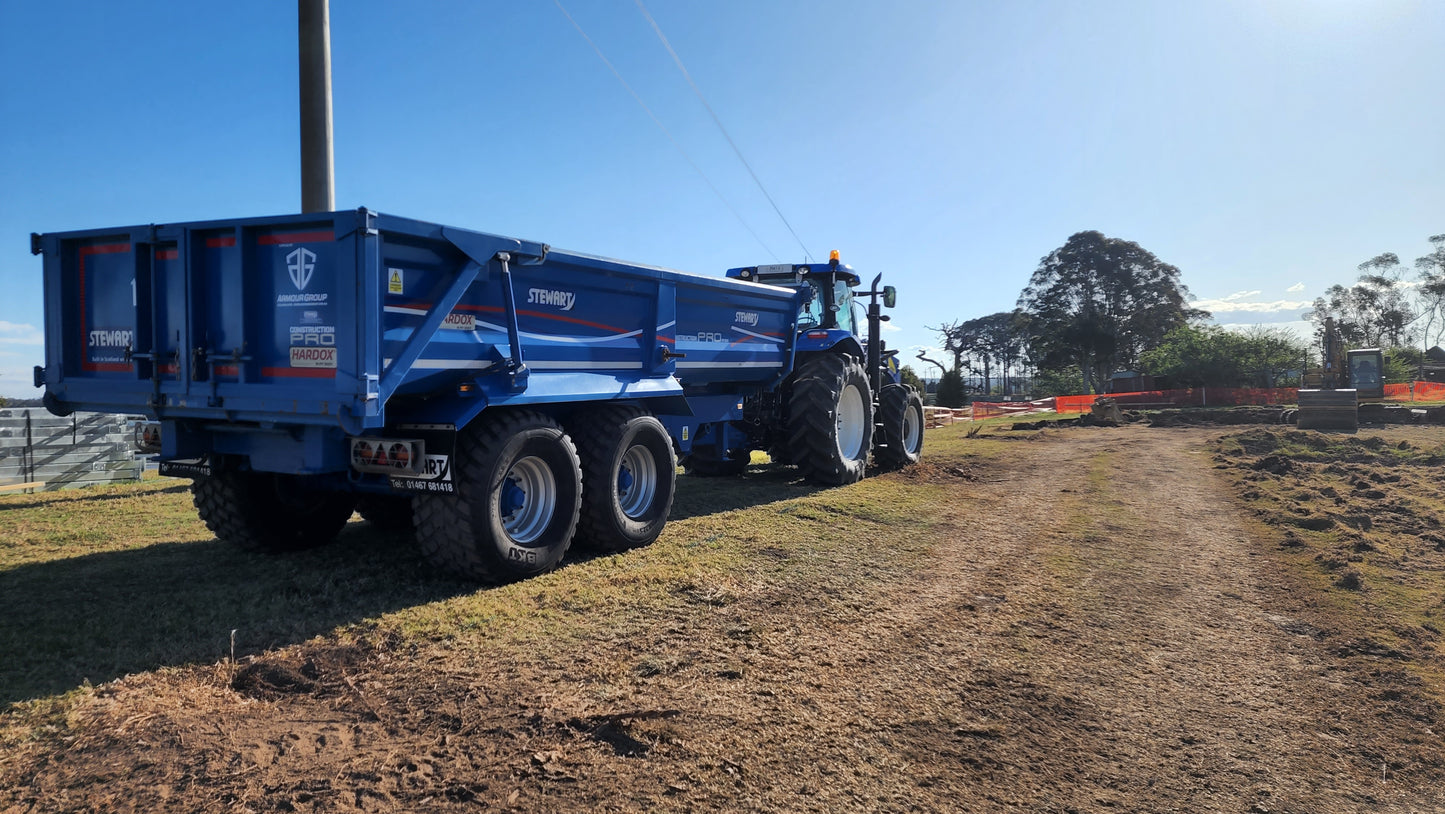

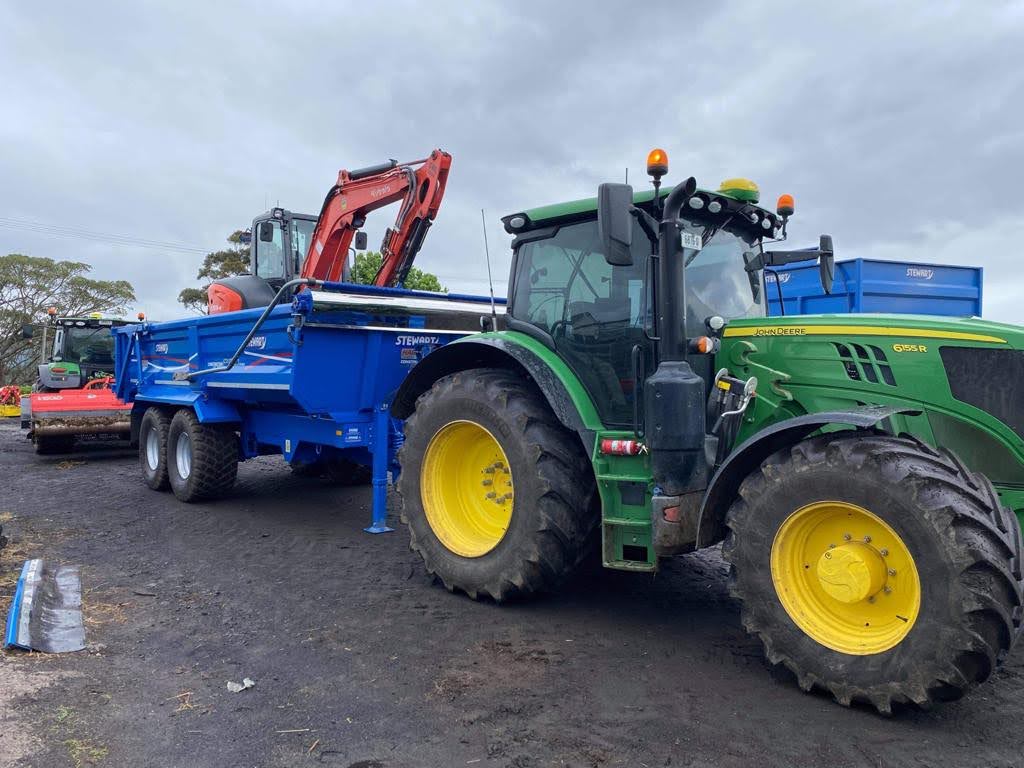

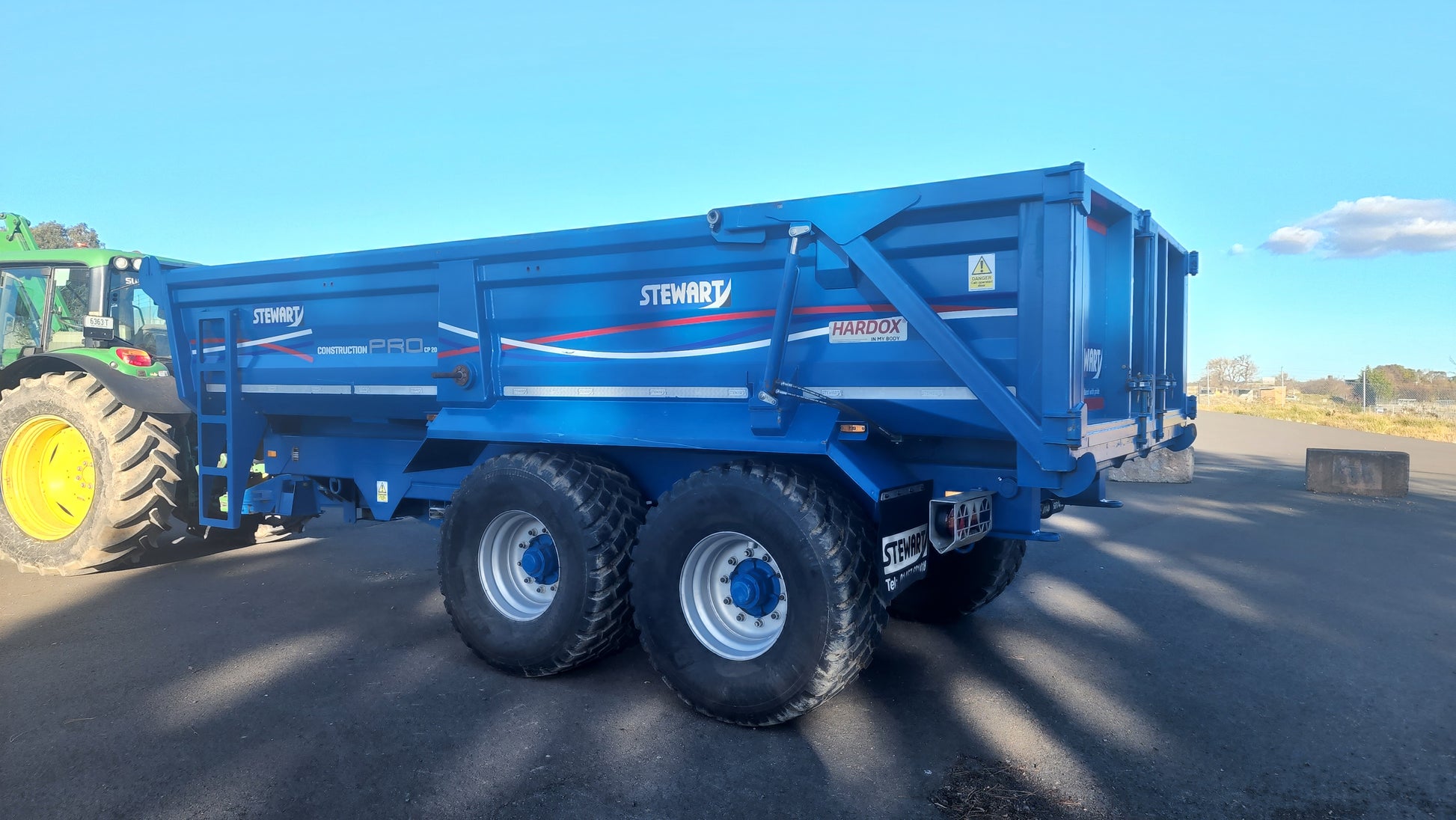

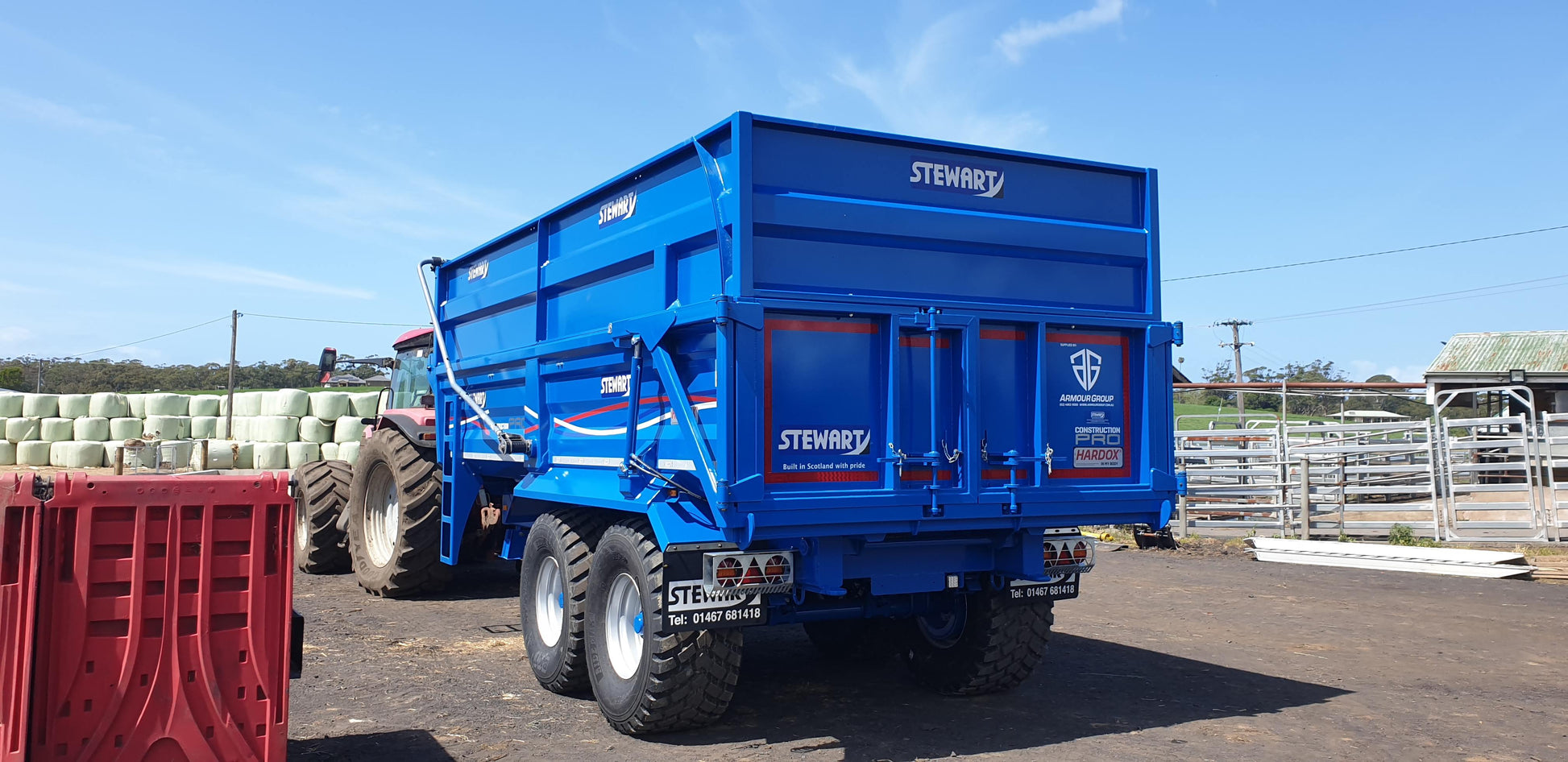

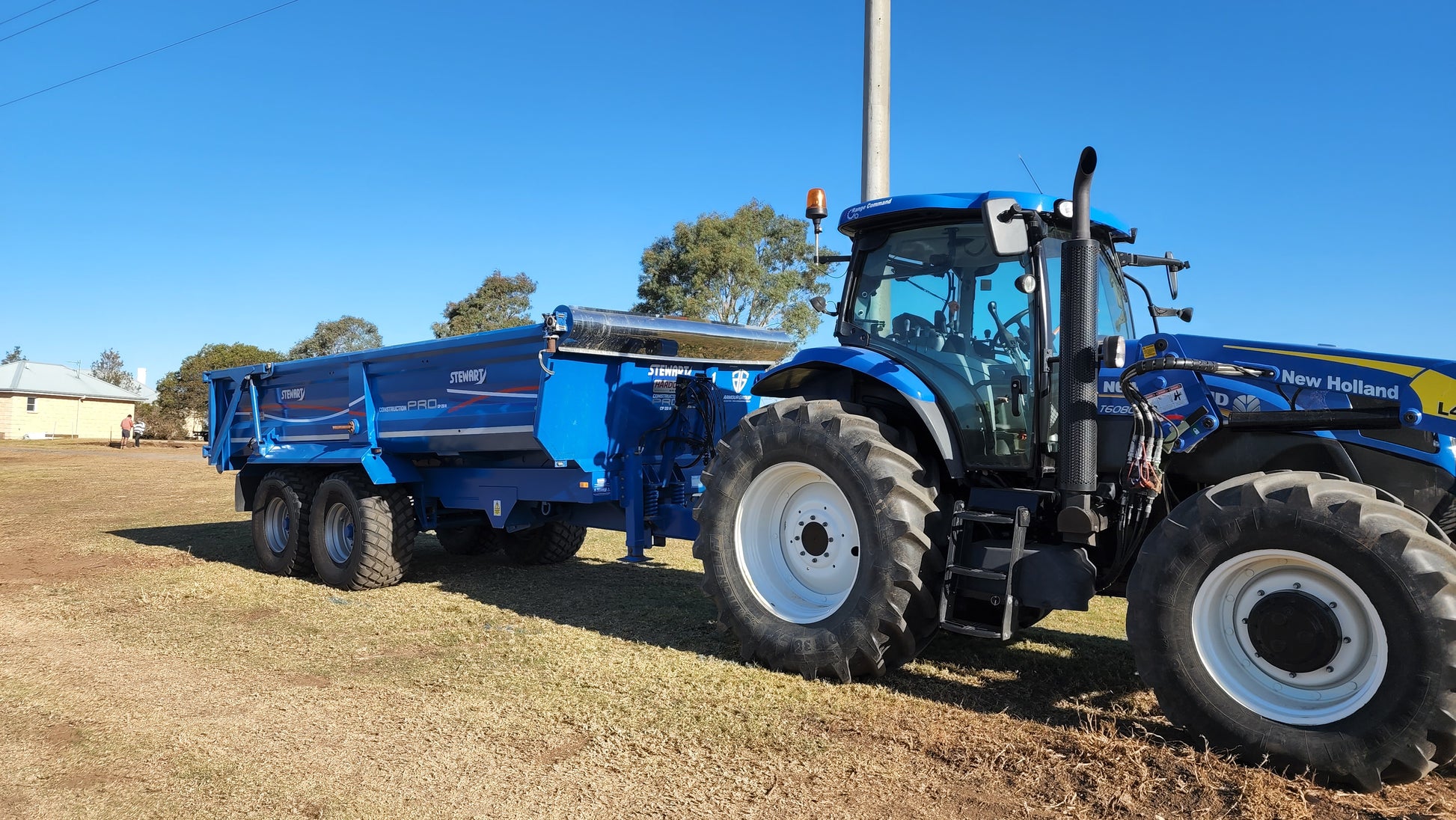

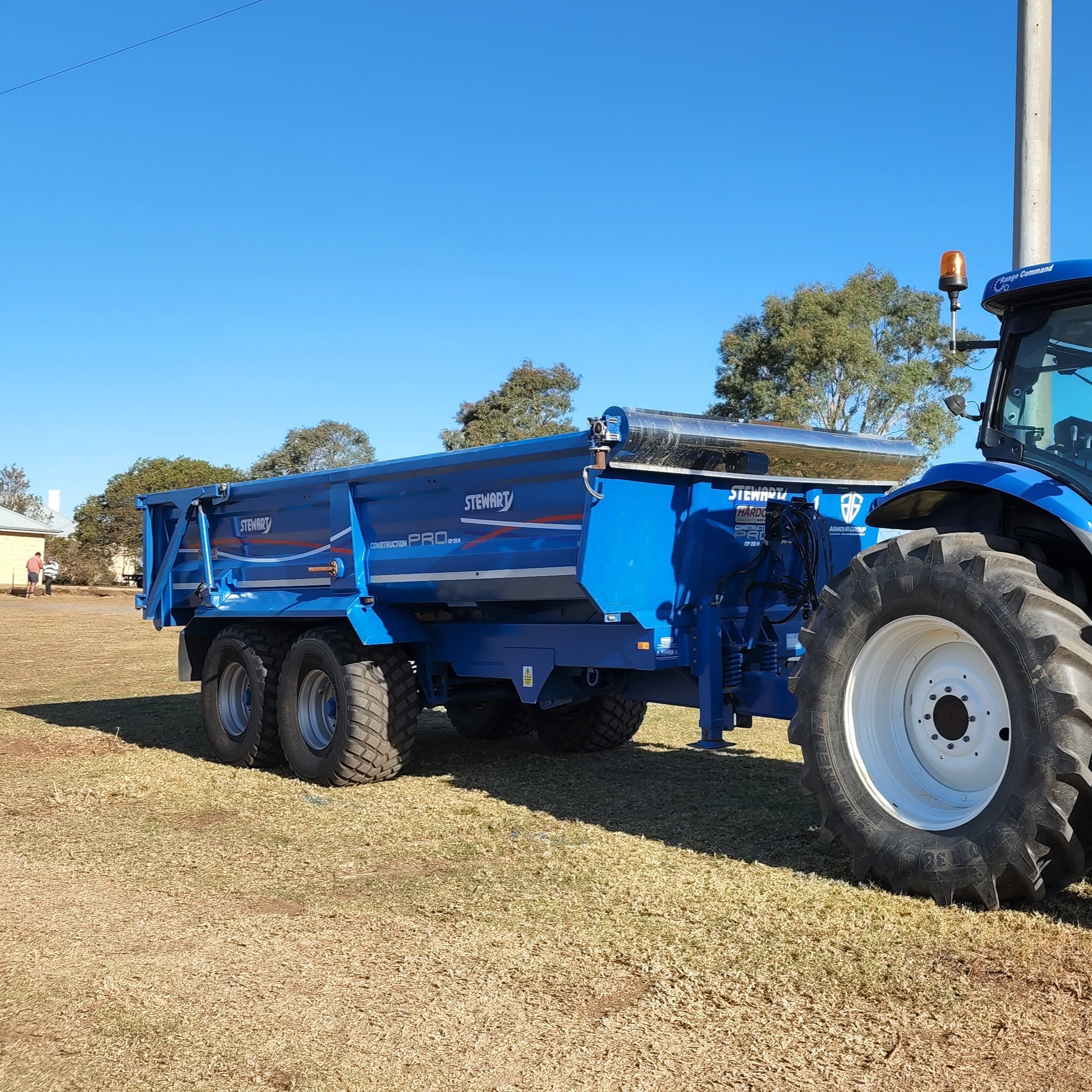

The CP-20H trailer is built for serious civil contractors who are looking for an edge over the competition.

Designed with Stewart’s “Bigger, Stronger, Tougher” motto in mind, it delivers the reliability and durability needed to maximize productivity and uptime on every job.

View full details

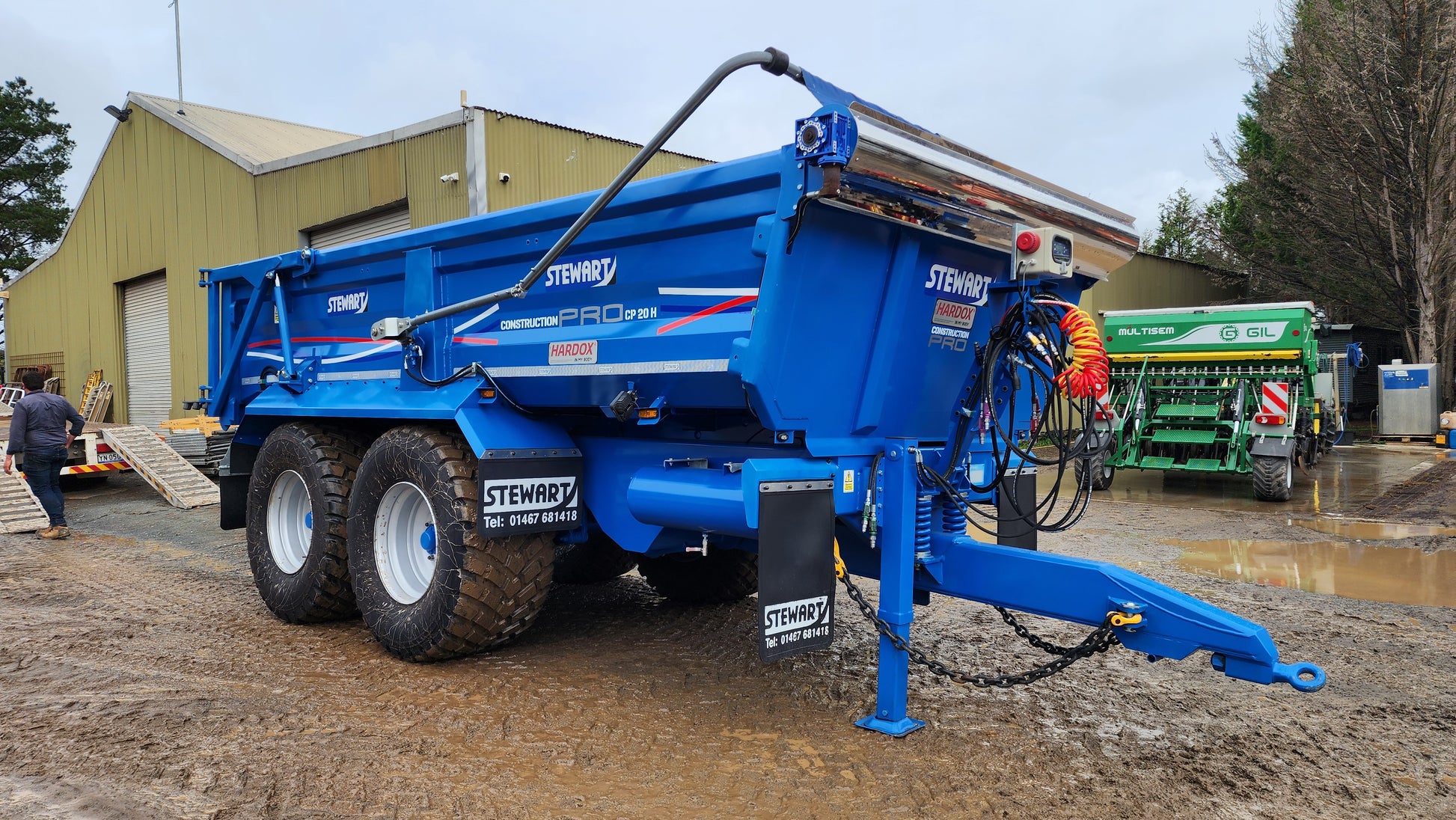

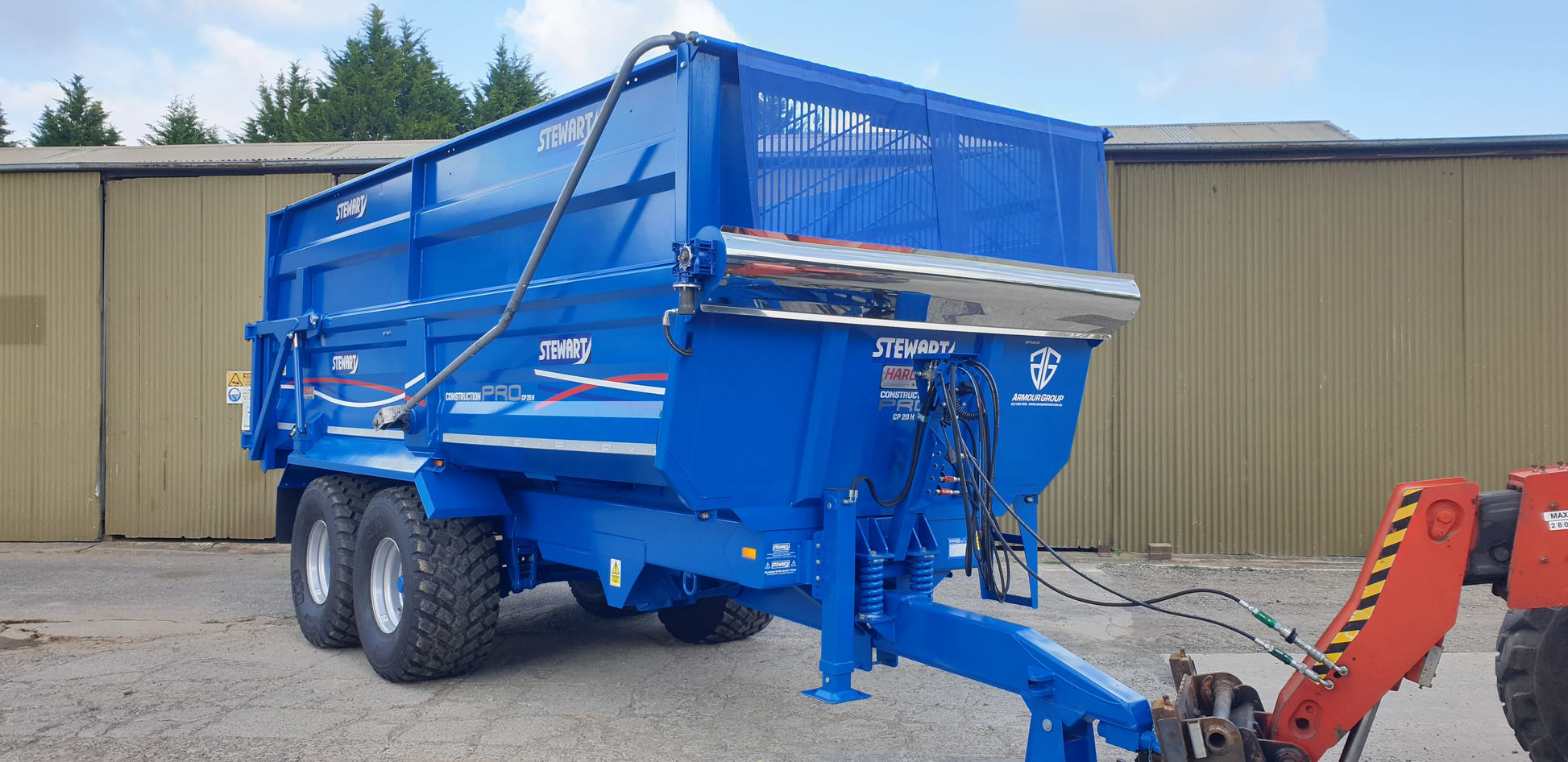

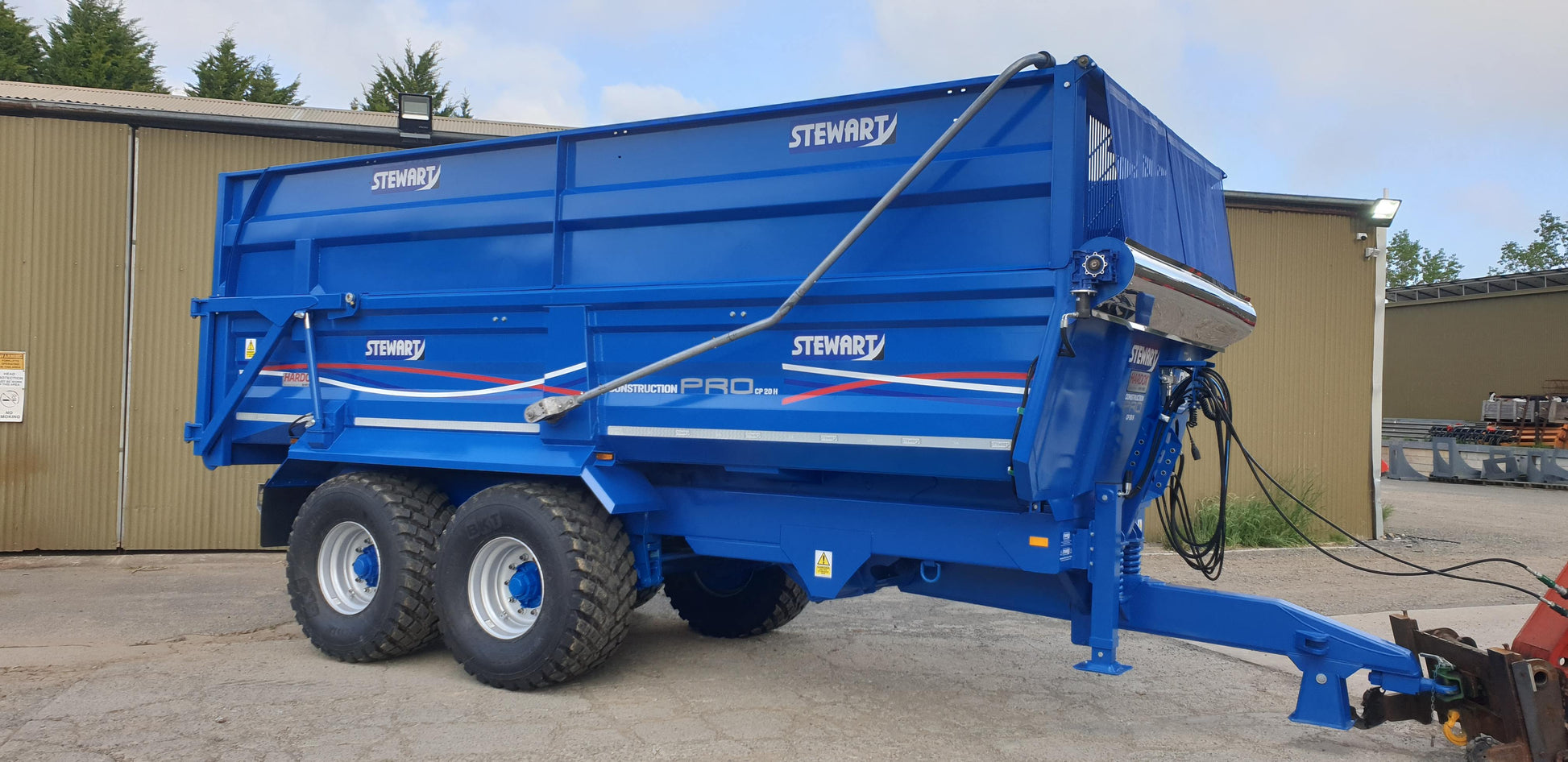

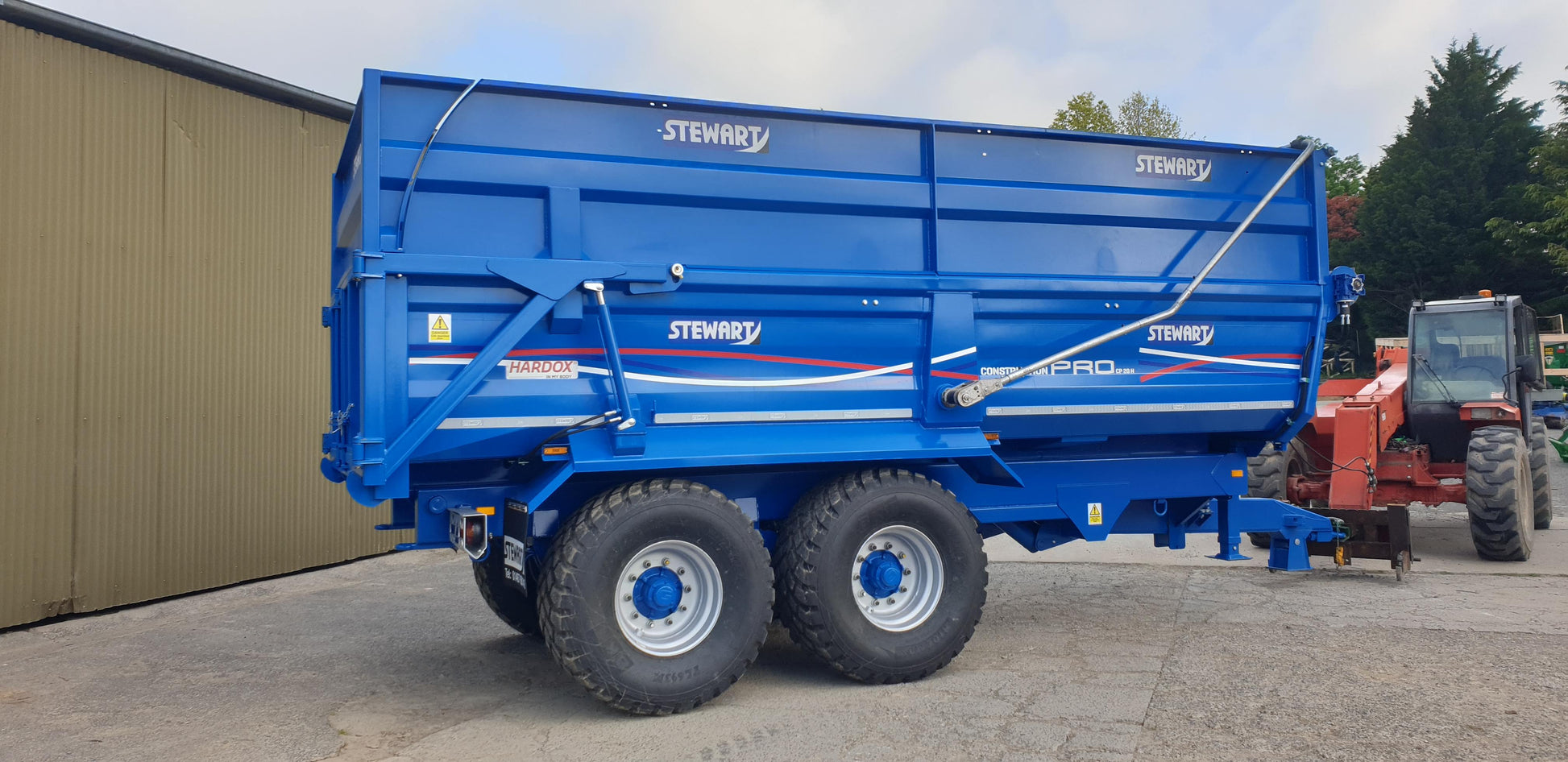

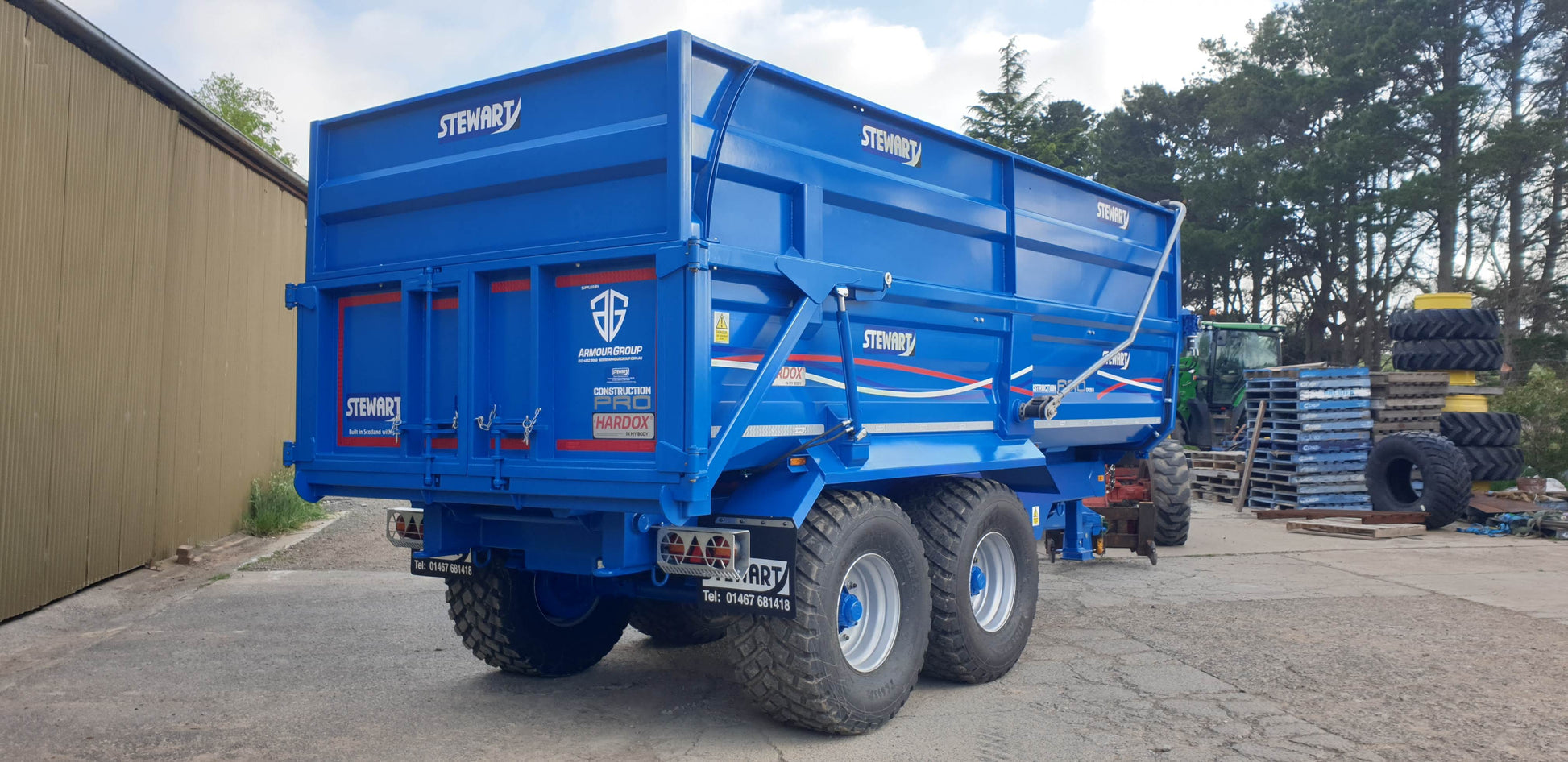

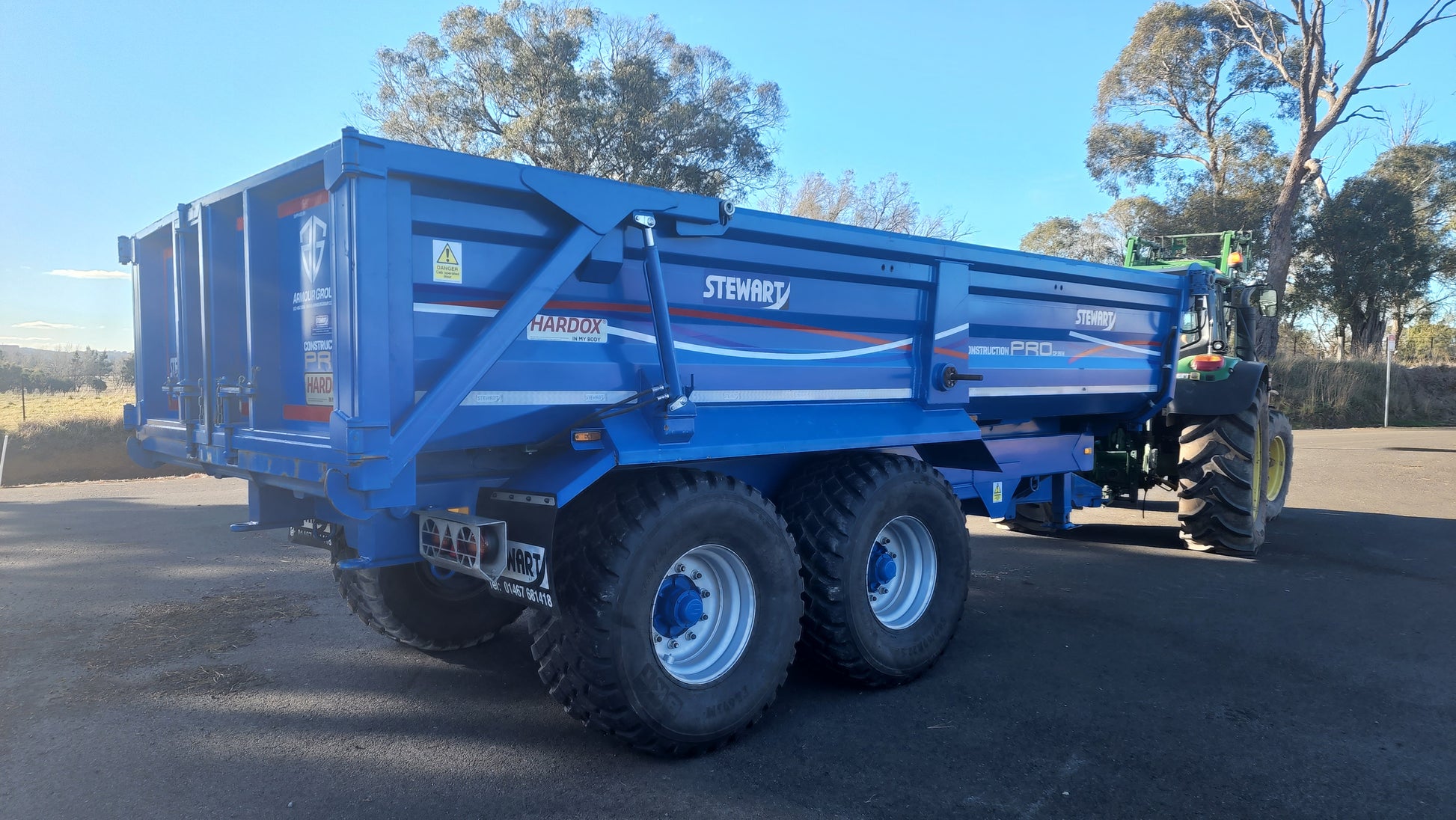

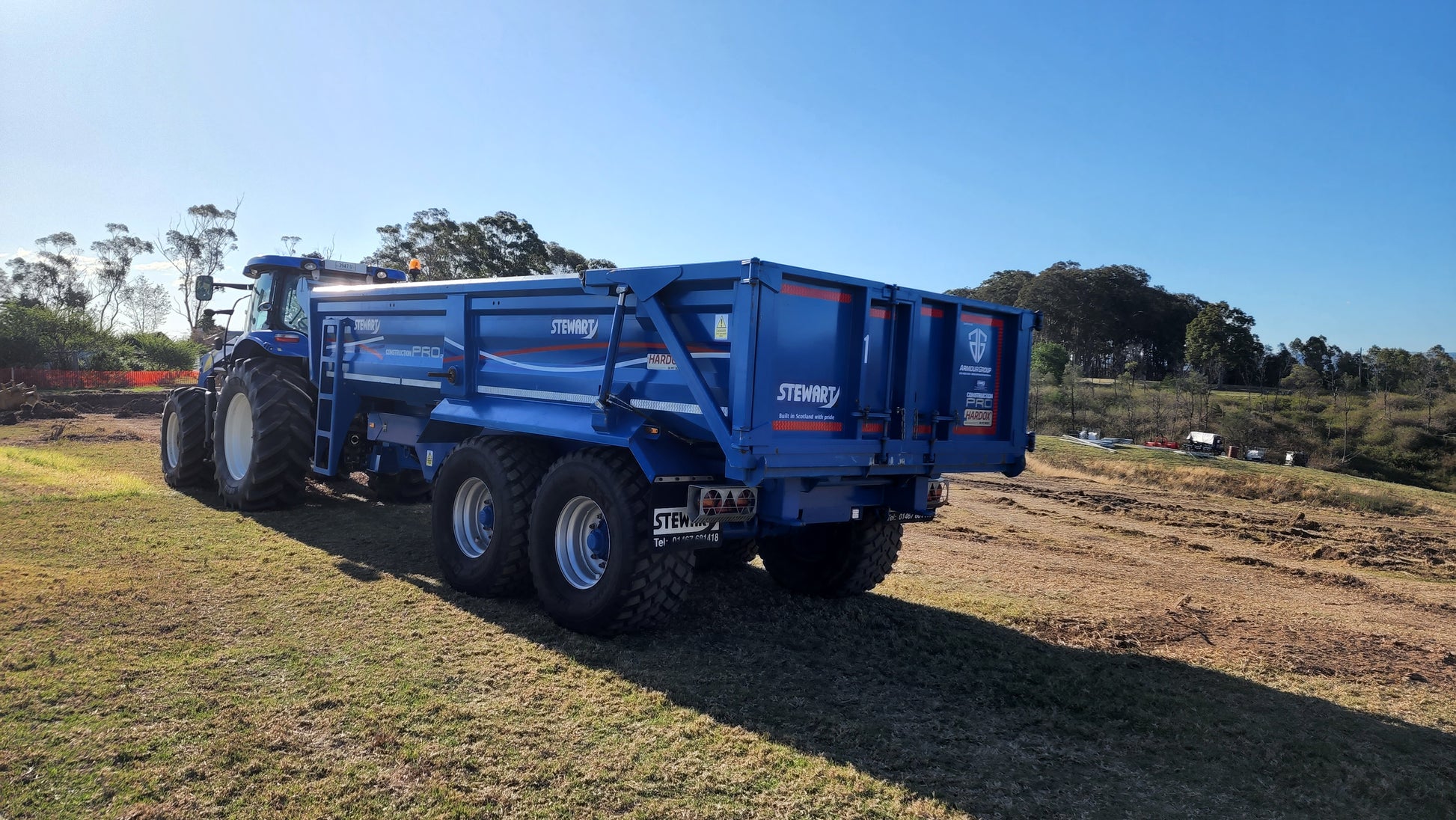

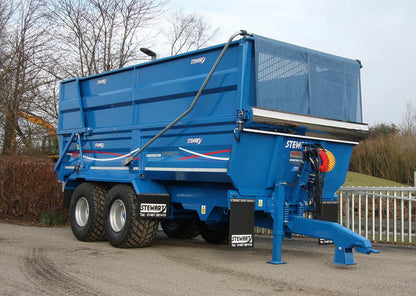

STEWART CP-20H Construction Tipping Trailer

  • 20,000kg Load Capacity
  • 6050mm (L) x 2450mm (W) x 1000mm (H)
  • Full HARDOX Body 8mm Floor & 6mm Walls
  • 13.7m3 Cubic Capacity
  • 300 x 150mm RHS Chassis & Tipper Chassis
  • Twin 4.5" Dia 4-Stage Tipping Rams
  • Sprung Drawbar with Safety Chain Lugs
  • 2-Speed Manual Jack Stand
  • 40mm Swivel Tow Eye

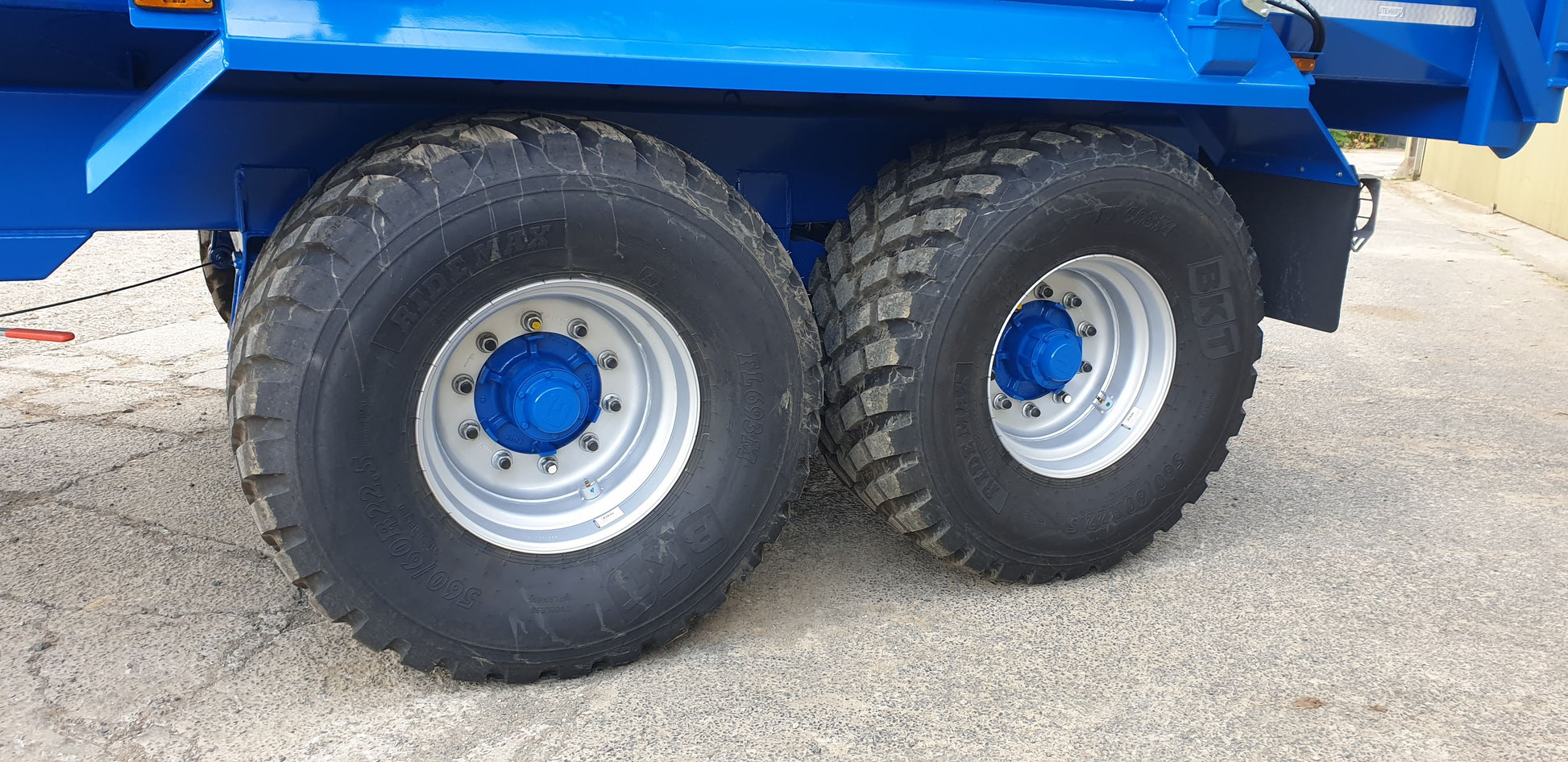

  • Tandem Granning 125mm - 10 Stud Axles
  • Granning Overslung Spring Suspension
  • Hydraulic Brakes

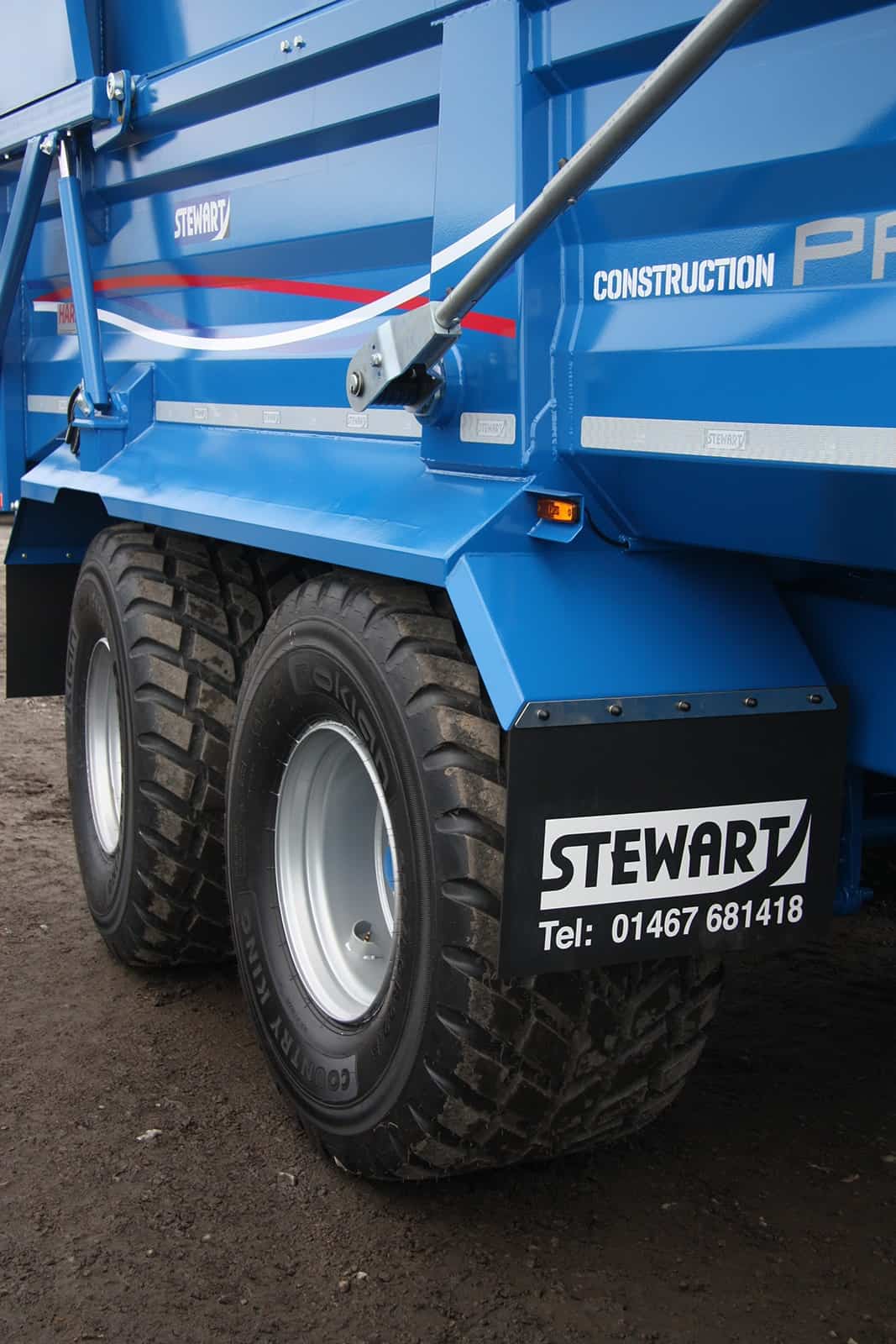

  • 560/60 x R22.5 Flotation Tyres

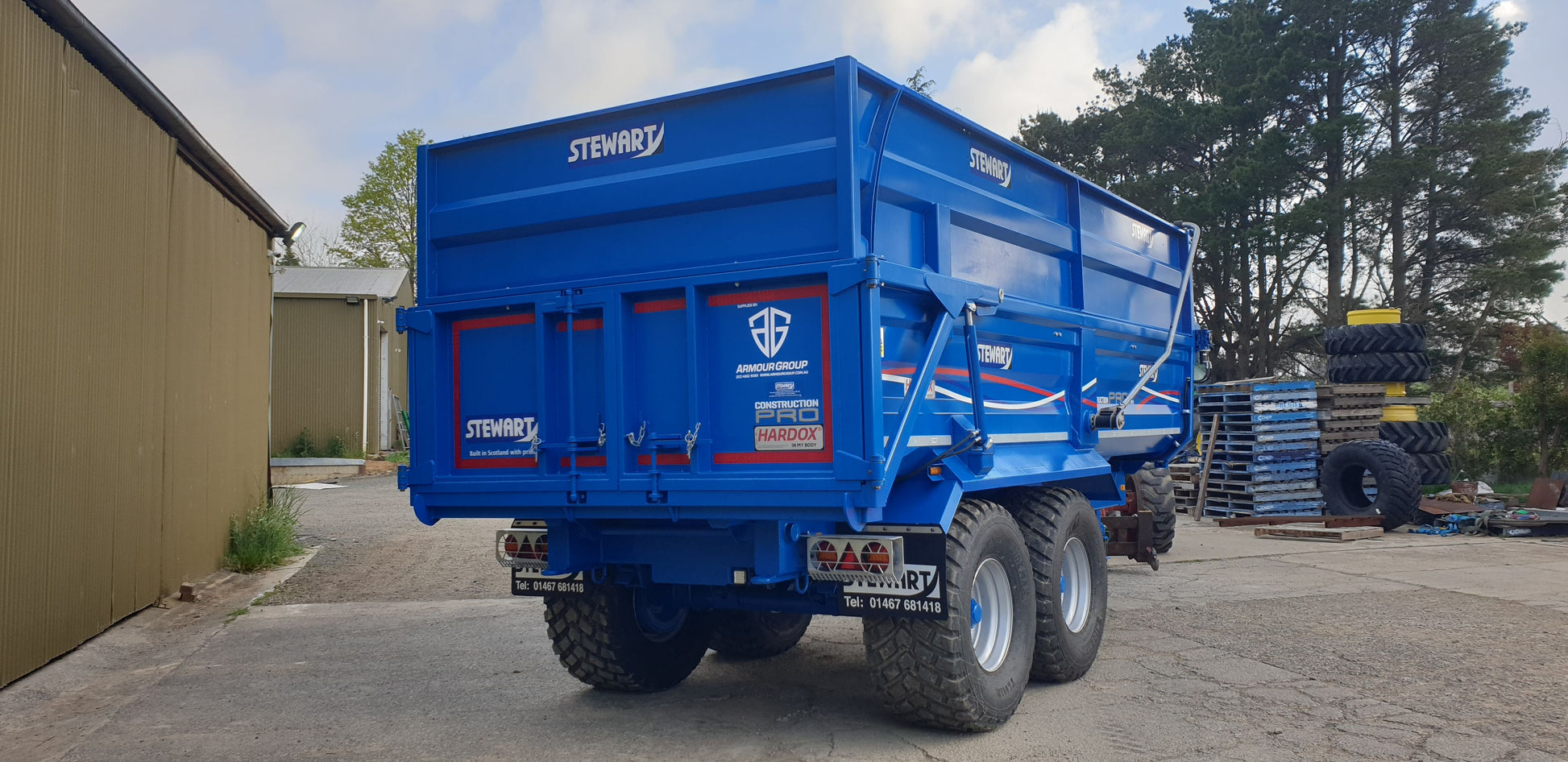

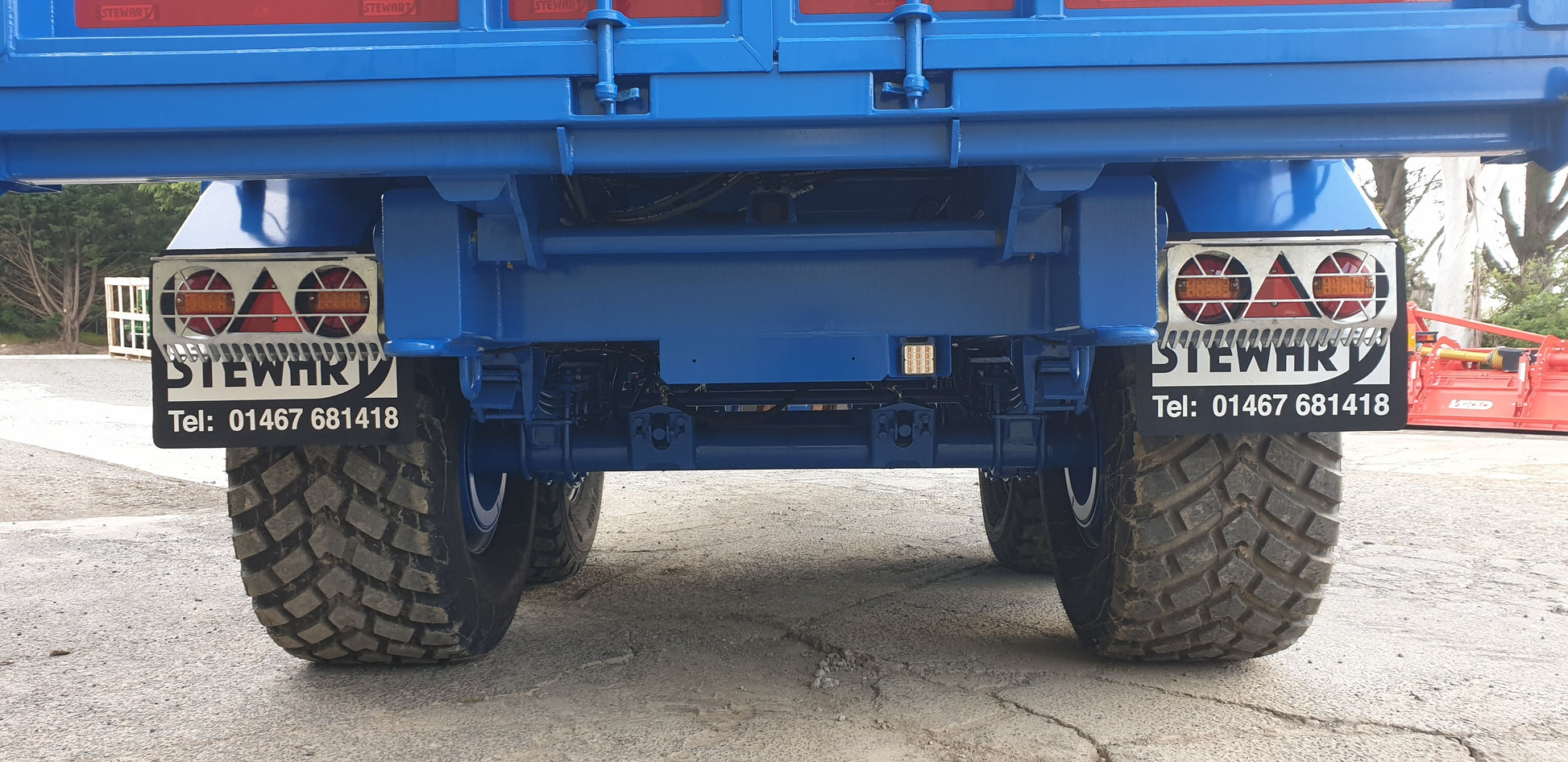

  • Rear LED Flasher & Full LED Road Light Kit
  • Shot Blasted & Finished in Flex Paint
  • Body Prop

Options:

  • Plastic Toolbox
  • Wide Body
  • Air Brakes
  • Grain Hatch
  • Weight Cells
  • Flip Over Tarp
  • Barn Doors

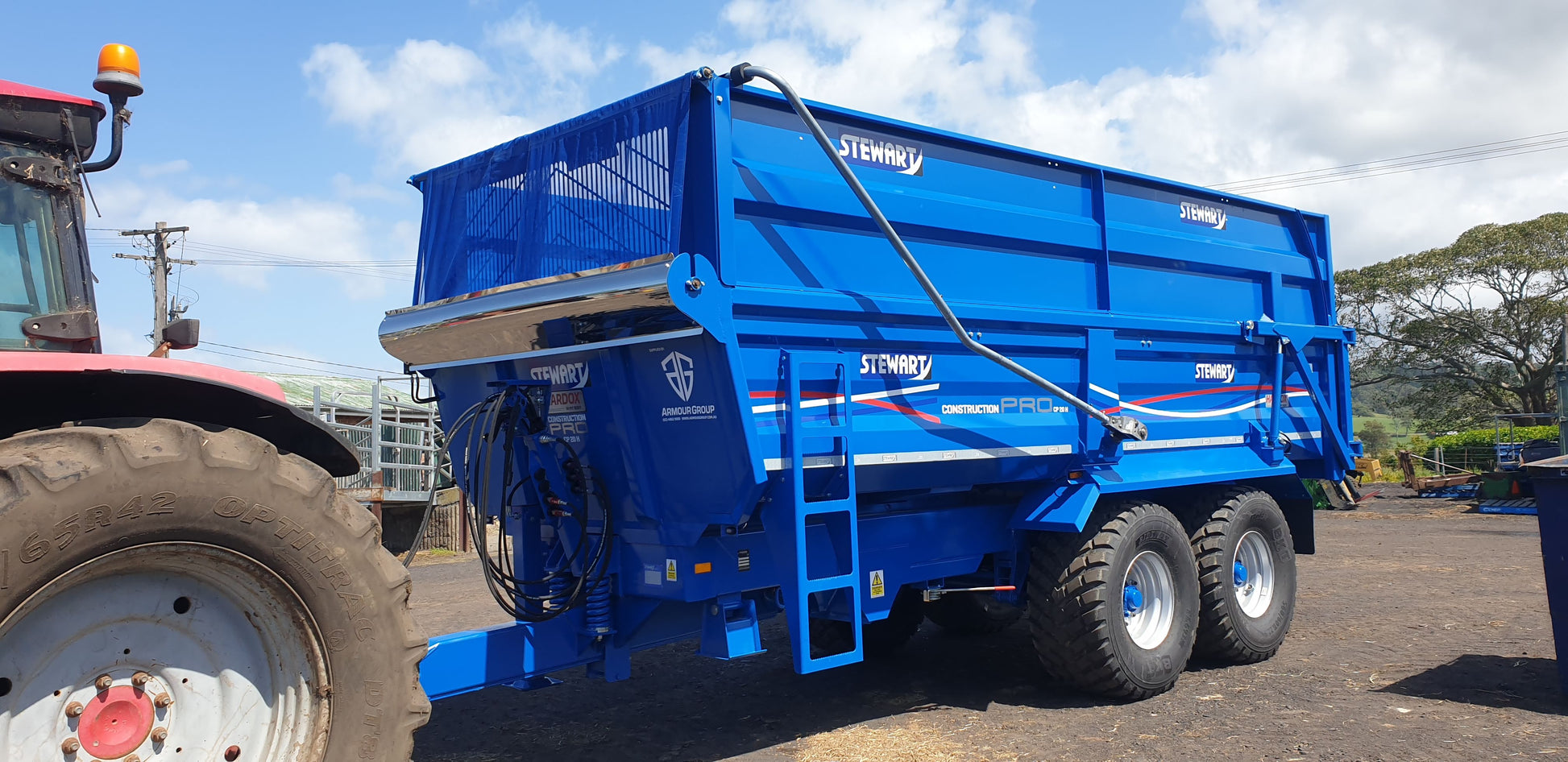

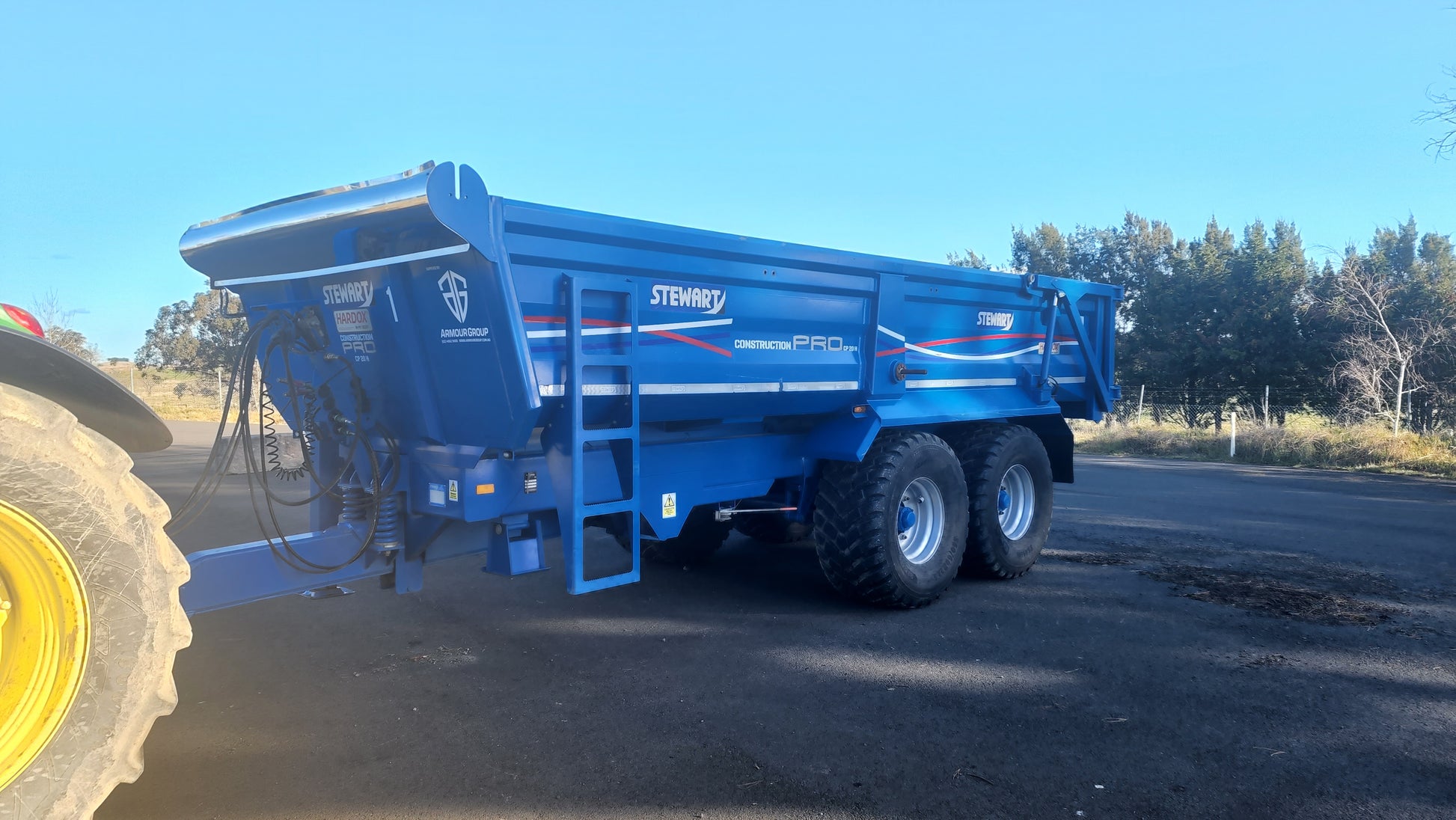

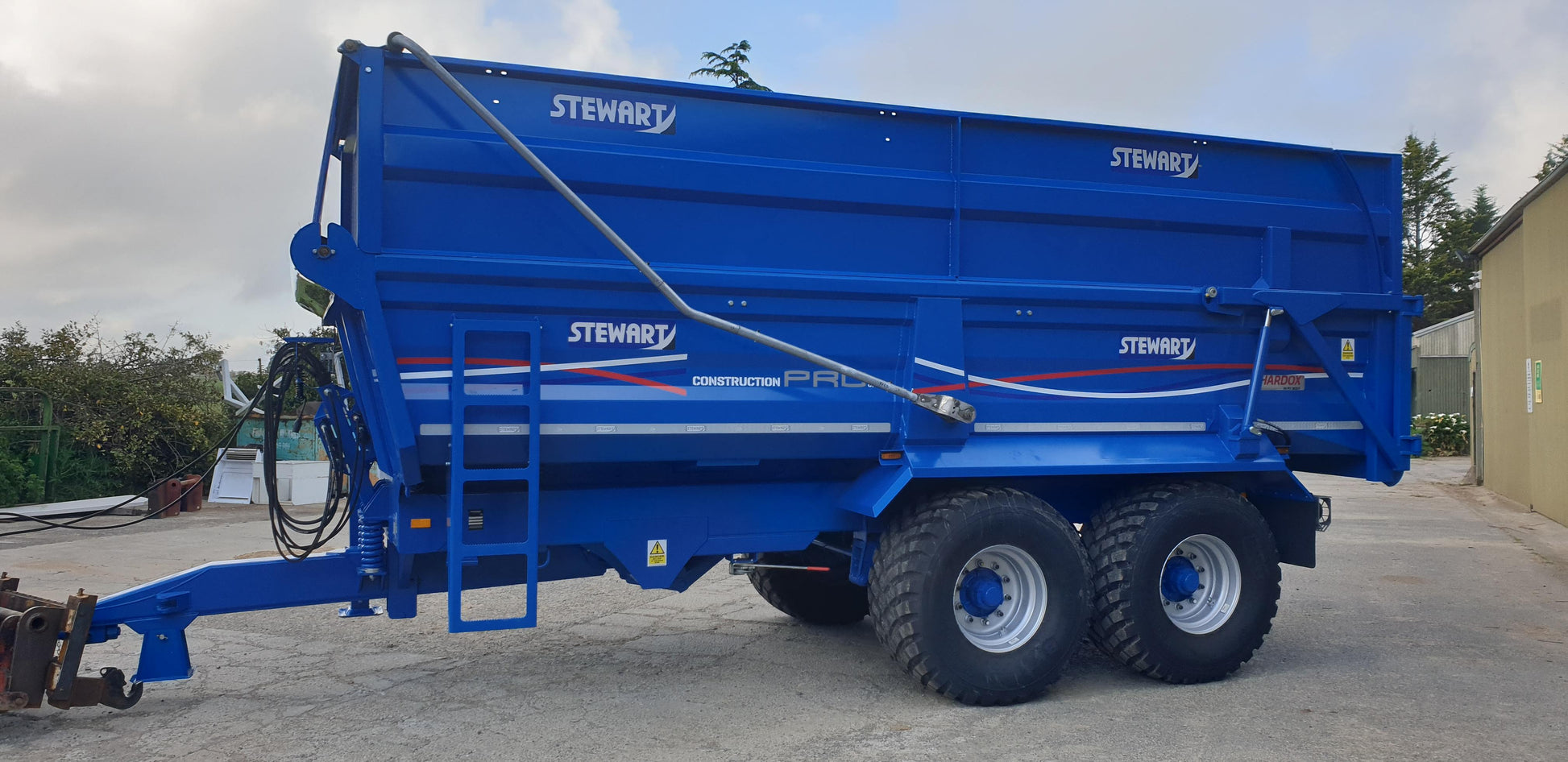

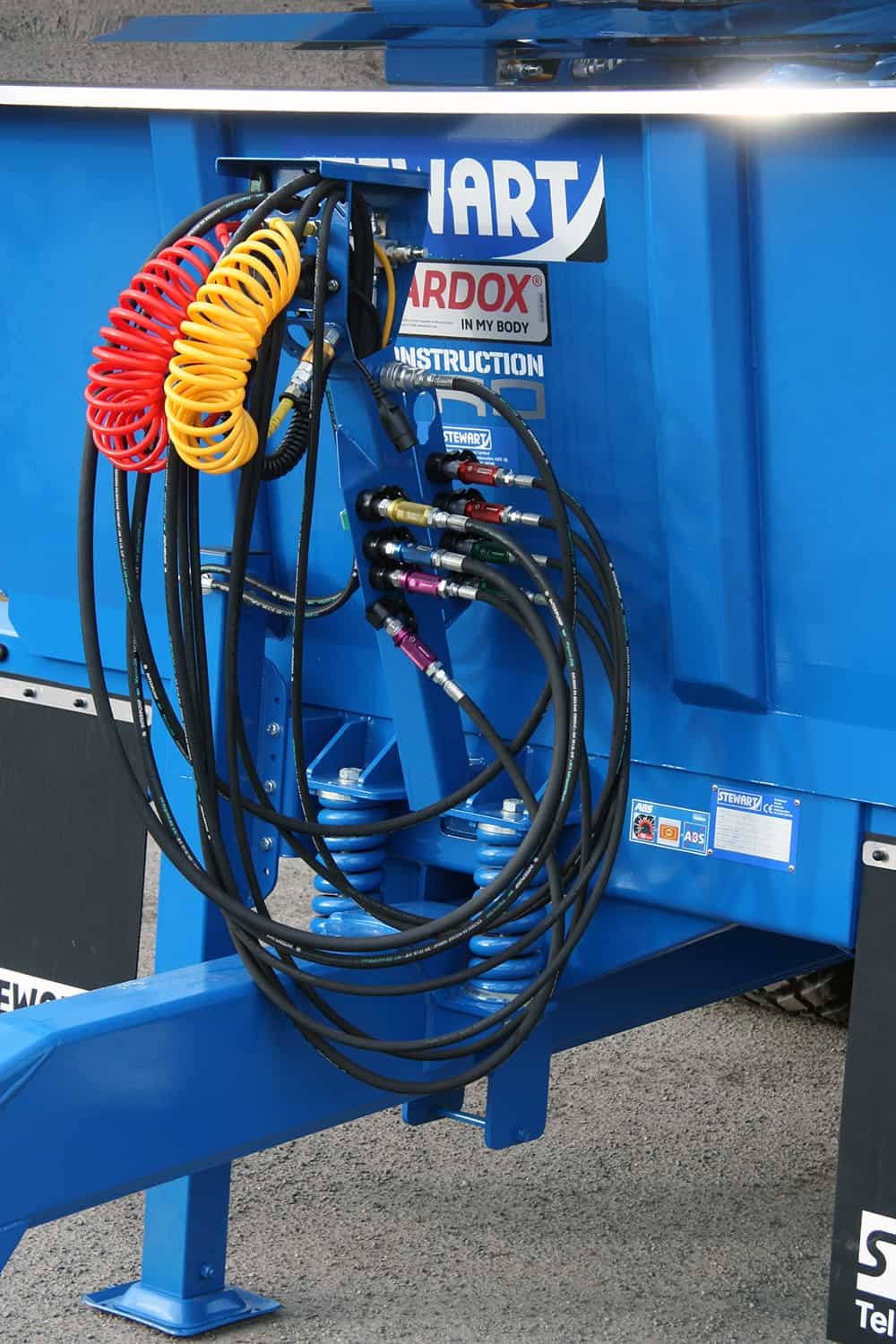

The CP-20H trailer is equipped with a sprung drawbar, preventing excessive load on the towing tractor while ensuring a smoother, more comfortable ride for operators.

Designed and built in Scotland for Australian conditions, Stewart trailers are engineered for unmatched strength, featuring a full chassis design with reinforced bracing. Dual-axle hydraulic brakes and LED road lighting ensure compliance for safe towing behind agricultural vehicles.

Each trailer is finished with a 2-pack flex paint, delivering a durable, high-quality finish that reflects the craftsmanship and pride of its Scottish makers.
