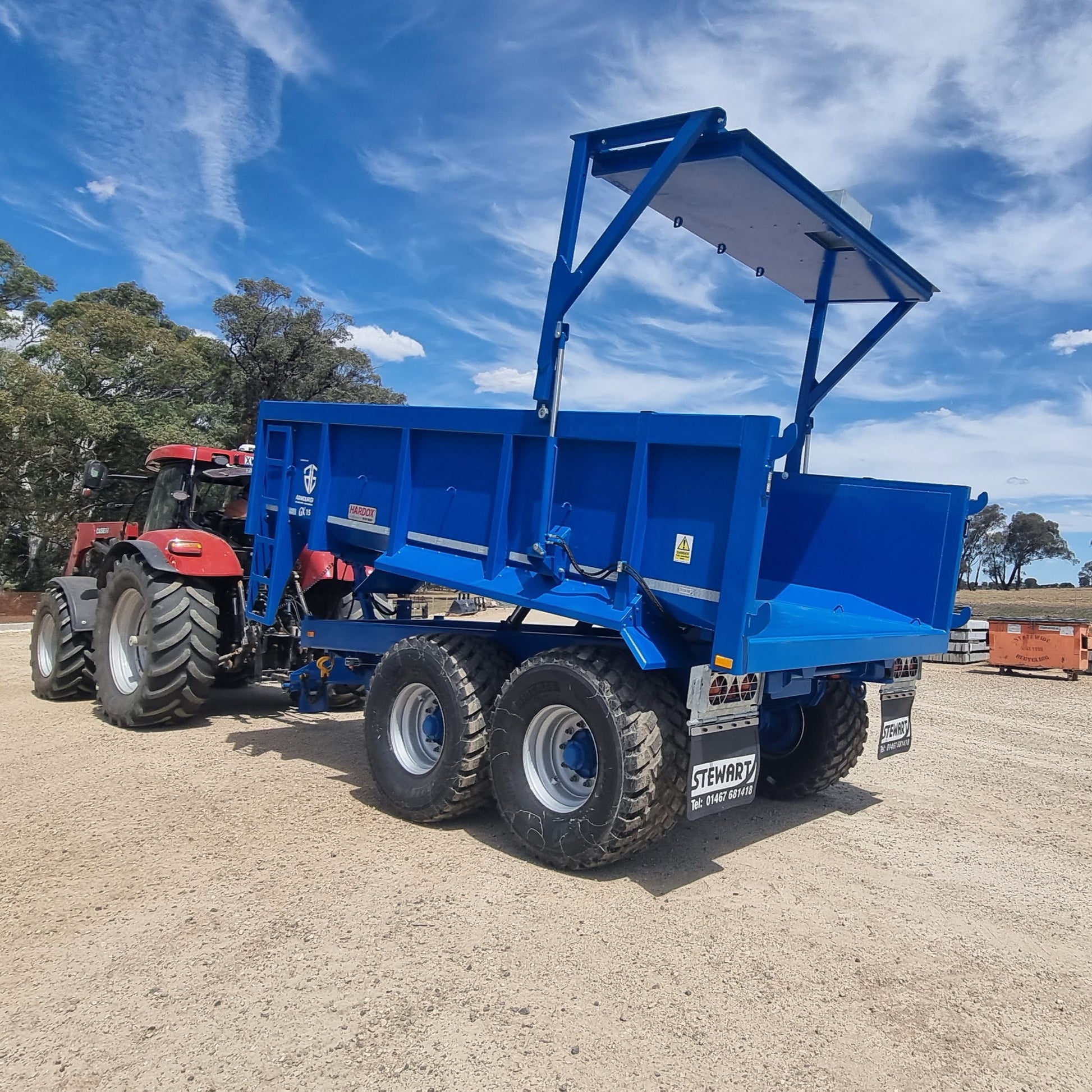

GX15-CM Construction Tipper Trailer













STEWART GX-15CM Construction Tipping Trailer
- 15,000kg Load Capacity
- 5140mm (L) x 2450mm (W) x 1060mm (H)
- 12.9m3 Cubic Capacity
- 250 x 150mm RHS Chassis & Tipper Chassis

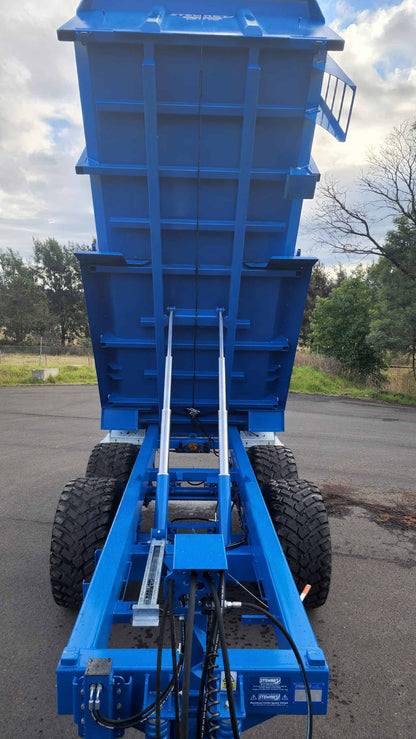

- Twin 4.25" Dia Tipping Rams
- Sprung Drawbar with Safety Chain Lugs
- 2-Speed Manual Jack Stand
- 40mm Swivel Tow Eye
- Tandem Granning 125mm - 10 Stud Axles
- Granning Overslung Spring Suspension
- Hydraulic Brakes
- 560/60 x R22.5 Flotation Tyres
- Rear LED Flasher & Full LED Road Light Kit
- Shot Blasted & Finished in Flex Paint
- Body Prop
Options:
- Plastic Toolbox
- HARDOX Body ( 8mm Floor & 6mm Sides)
- Wide Body
- Air Brakes
- Grain Hatch
- Weight Cells
- Flip Over Tarp
- Barn Doors
The GX-15CM trailer is equipped with a sprung drawbar, preventing excessive load on the towing tractor while ensuring a smoother, more comfortable ride for operators.
Designed and built in Scotland for Australian conditions, Stewart trailers are engineered for unmatched strength, featuring a full chassis design with reinforced bracing. Dual-axle hydraulic brakes and LED road lighting ensure compliance for safe towing behind agricultural vehicles.
Each trailer is finished with a 2-pack flex paint, delivering a durable, high-quality finish that reflects the craftsmanship and pride of its Scottish makers.
