EDGE-6 Drop Side Tipping Trailer

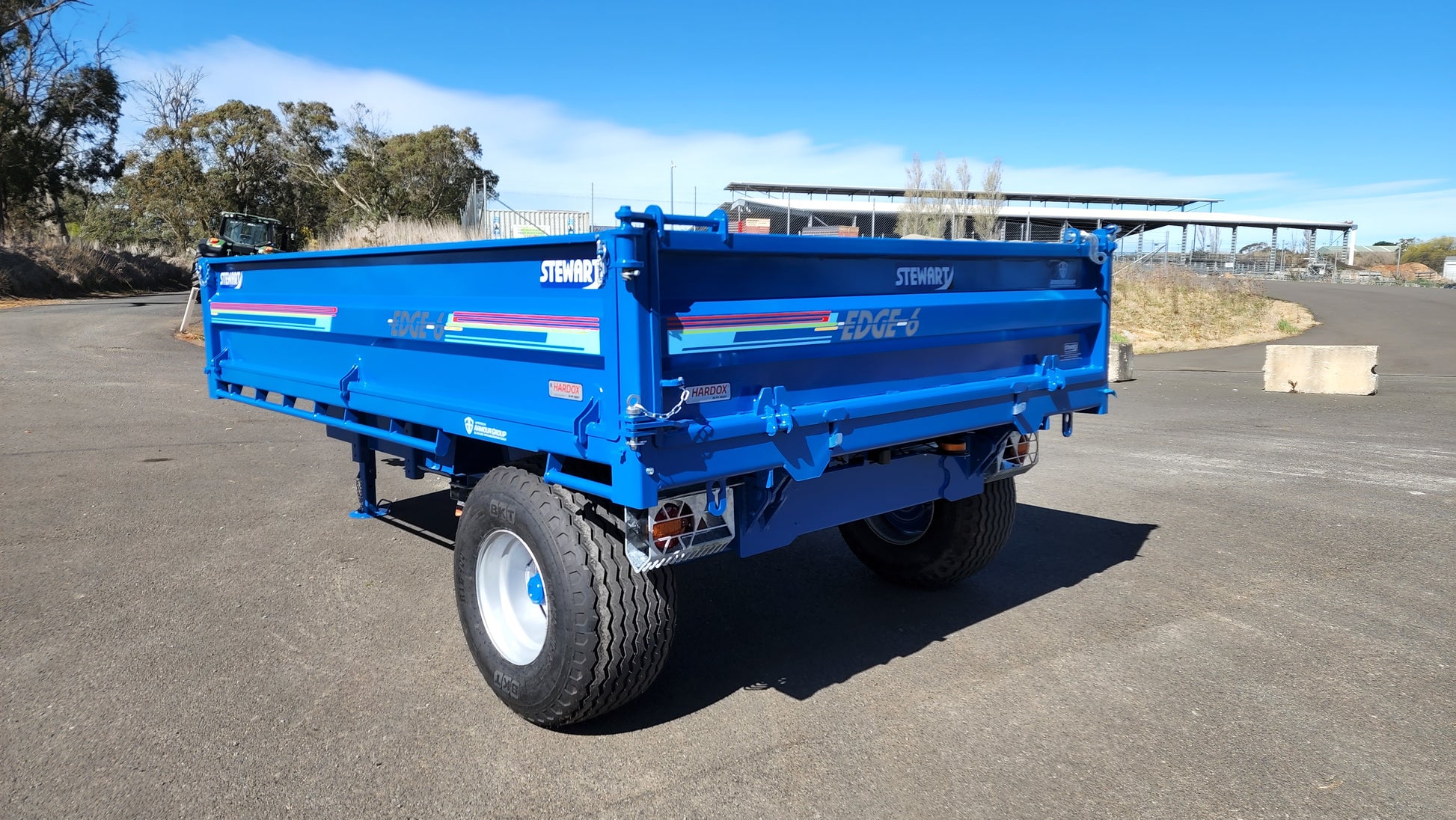

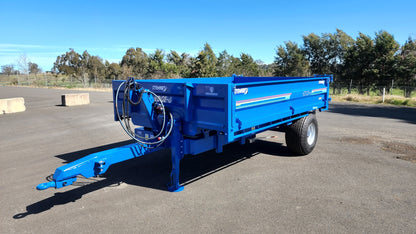

STEWART Edge-6 Drop Side Tipping Trailer
- Minimum 55HP required
- 6000kg Load capacity
- 3500 x 2420 x 500mm Body w. Drop Sides
- Full HARDOX Body. 4mm Wall, 2mm Sides
- 2-Way Tailgate w. Spreading Chain Attachments
- HD Full Width Chassis, 200 x 100 Channel
- Single Axle, ADR 70mm 6 Stud
- Hydraulic Brakes
- 400/60x15.5 Flotation Tyres
- 2-Stage Single Tip Ram, 3.5” Diameter, Chrome Plated
- Mechanical Jack Stand
- LED Road Lights w. Rear Beacon
- 40mm Swivel Hitch w. Safety Chain Attaching Points
- Shot Blasted & Finished in Flex Paint
All EDGE trailers feature the 2-way tailgate design, enabling any load to be emptied or distributed via the rear tailgate. All sides can be removed, and these trailers can easily be converted into formidable flatbed trailers.
Designed and built in Scotland, for Australian conditions the all-new Stewart ‘Edge’ Drop-Sided Tipping trailers are built for you. Featuring full Hardox® body and sides meaning the trailer is very strong, protected from rock damage, and lighter in overall tare weight without sacrificing any strength. Other features such as dual axle hydraulic breaks and LED road lighting on the larger models.
Chrome-plated rams are a standard feature, ensuring long life without any fear of rust damage. All trailers are painted with 2-pack PPG flex paint to give an impressive fit and finish which complements the quality of the build and the pride of the Scottish owners!
