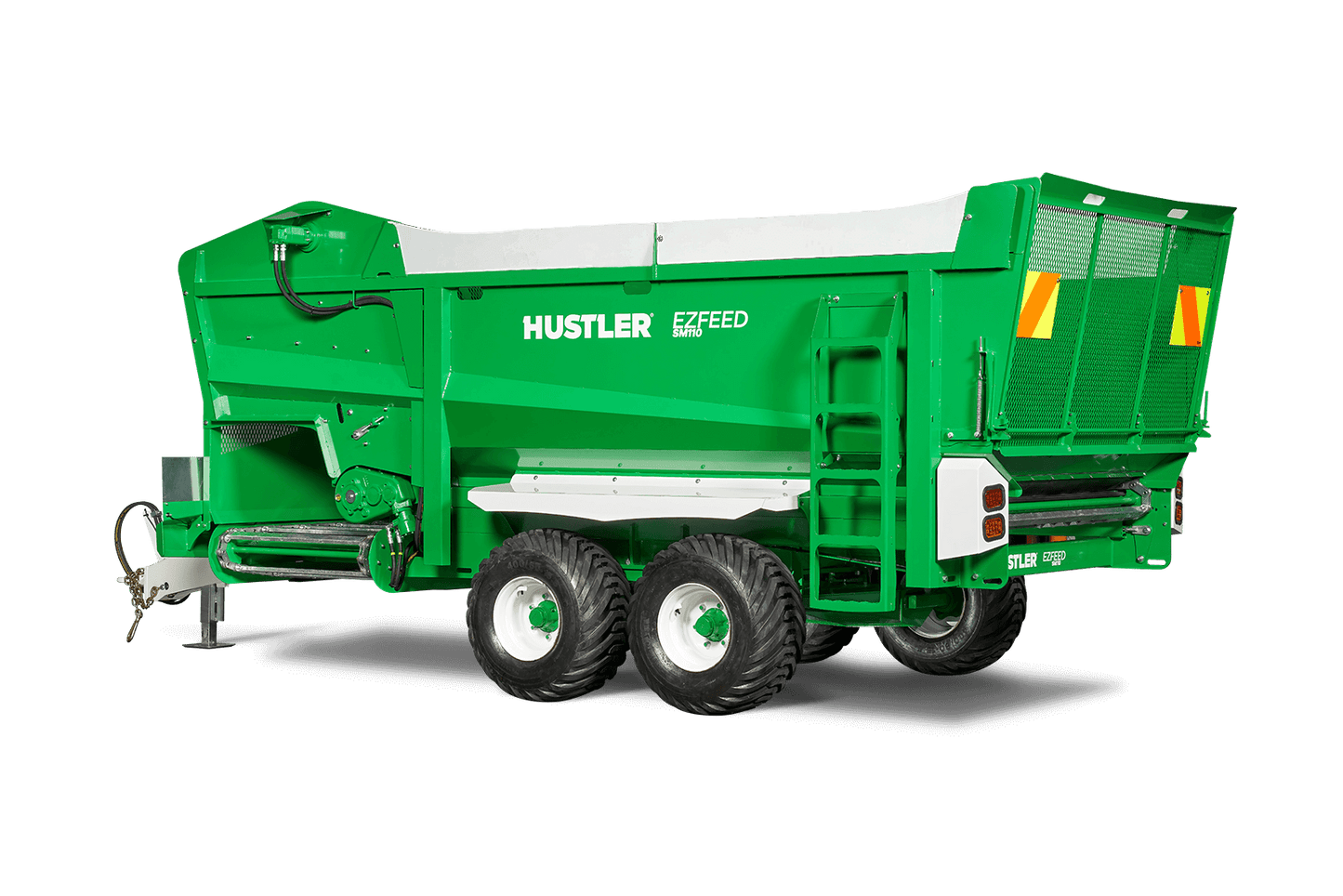

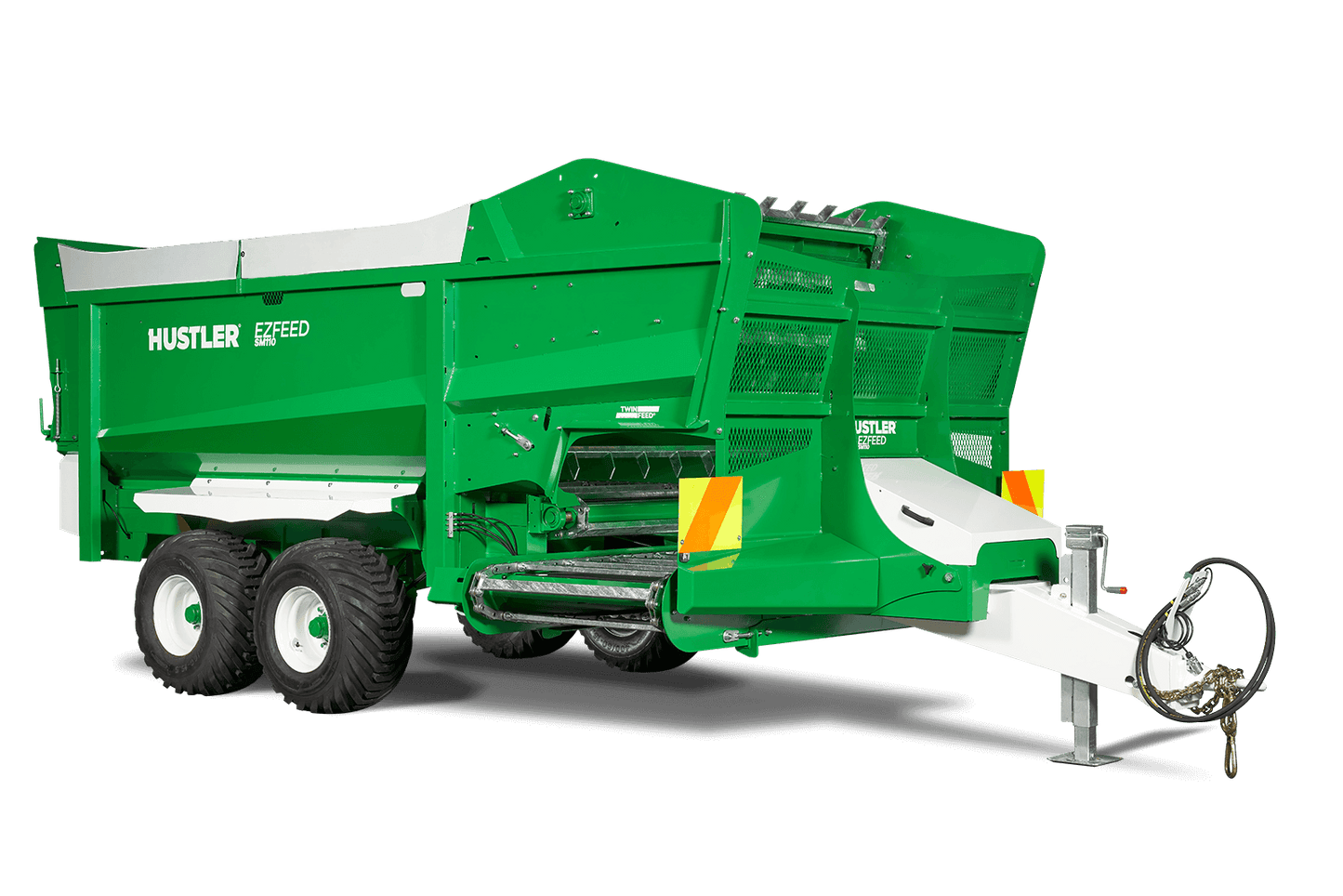

EZFEED SM110
| Overall Length | 7000 mm | 275.5 in |
| Overall Width | 2800 mm | 110.2 in |
| Height | 2575 mm | 101.3 in |
| Loading Height | 2360 mm | 92.9 in |
| Loose Silage (load level) | 11 m³ | 14.3 yd³ |
| Loose Silage (heaped load) | 12 m³ | 15.6 yd³ |
| Maximum Load : | 7,000 kg | 15,432 lb |
| Tyres: | 400 / 60 x 15.5 Flotation Grip Tread |
| Axle: | Tandem Walking Beam |
| Brakes: | Optional 2 wheel braking |
| Guards: | Standard removable HD Guards |
| Remote Greasing: | Standard |
| Ladder: | Standard |
| Weigh Scales: | Optional Feedlink weighing and feed management system |
| Floors (Bed Floor / Cross Floor): | 15mm (0.6 in) HD Puck Board / 15mm (0.6 in) HD Puck Board |
| Chains (Bed / Elevator / Conveyor): | Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains |
| Feed bars (Bed / Elevator / Conveyor): | 65 x 35 RHS / 65 x 35 RHS / 50 x 25 RHS |
| Drive system (Bed / Elevator / Conveyor): | Sealed Reduction Gearbox / Direct Drive / Direct Drive |
| Hydraulics required: | 1 x double acting, 50-60 litres/min (11-13 gallons / min), 2250-3000 psi |
| Hydraulic Flow: | 50-70 L/min (80 L/min maximum) | 13.2-18.5 gal/min (21.1 gal/min maximum) |
| Hydraulic Pressure: | 2610-2900 psi | 180-200 bar |
| Conveyor: | TwinFeed LH & RH side discharge, 1000mm (39.4”) wide chain/slat |
| Jack: | 80 mm | 3.1 in 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand |
| Towing Eye Size: | 50 mm | 2 in |
EZFEED SM130
| Overall Length: | 7050 mm | 277.5 in |
| Overall Width: | 2800 mm | 110.2 in |
| Height: | 2710 mm | 106.6 in |
| Loading Height: | 2600 mm | 102.3 in |
| Loose Silage (load-level): | 13 m³ | 17 yd³ |
| Loose Silage (heaped load): | 14 m³ | 18.31 yd³ |
| Maximum Load: | 10,000 kg | 22,046 lb |
| Tyres: | 400 / 60 x 15.5 Flotation Grip Tread |
| Axle: | Tandem Walking Beam |
| Brakes: | Optional 2 wheel braking |
| Guards: | Standard removable HD guards |
| Remote greasing: | Standard |
| Ladder: | Standard |
| Weigh Scales: | Optional Feedlink weighing and feed management system |
| Floors (Bed Floor / Cross Floor): | 15mm (0.6 in) HD Puck Board / 15mm (0.6 in) HD Puck Board |
| Chains (Bed / Elevator / Conveyor): | Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains |
| Feed bars (Bed / Elevator / Conveyor): | 65 x 35 RHS / 65 x 35 RHS / 50 x 25 RHS |
| Drive system (Bed / Elevator / Conveyor): | Sealed Reduction Gearbox / Direct Drive / Direct Drive |
| Hydraulics required: | 1 x double acting |
| Hydraulic Flow: | 50-70 L/min (80 L/min maximum) | 13.2-18.5 gal/min (21.1 gal/min maximum) |
| Hydraulic Pressure: | 2610-2900 psi | 180-200 bar |
| Conveyor: | TwinFeed LH & RH side discharge, 1000mm (39.4”) wide chain/slat |
| Jack: | 80 mm | 3.1 in 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand |
| Towing Eye Size: | 50 mm | 2 in |
