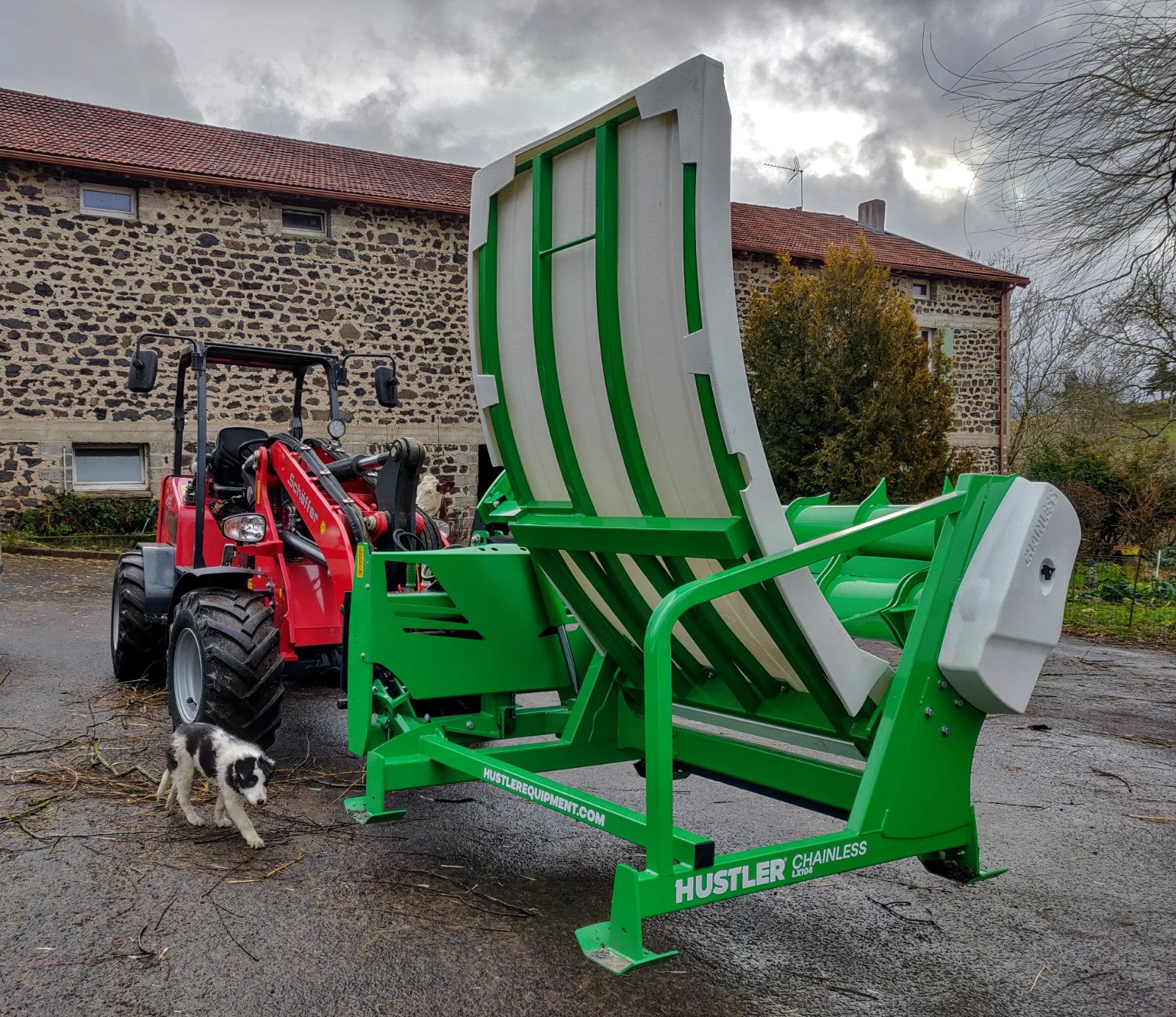

The all-new Chainless LX² series mounted bale feeder is the ultimate solution for efficient, waste-free feeding. Designed to handle any bale type – both round and square – with ease, the Chainless LX² series is low maintenance, features a hands-free quick hitch system, adjustable platform and heavy-duty construction for unmatched reliability. Experience quieter, cleaner operation and improved livestock wellbeing while saving on fuel and feed costs, all backed up with our legendary 5 year NO BULL warranty. Future-proof your feeding operation with the Hustler Chainless system, where versatility meets performance.

Mounted Chainless LX104²
Bale size round: 4’ X 4’ – 6’ X 4’
Bale size square: All sizes. Over 6’ long requires optional platform extension
Weight Capacity: 1250kg
Bale Capacity: 1 bale
Unit weight: 680kg
Tractor size: 80hp +
Hydraulics required: 2 x double-acting, 30-60 litres/min, 2250-3000 psi
Loading: Snaplox patented self-loading system
Size (L x W x H): 1935 x 2648 x 1271 mm


Mounted Chainless LX105²
Bale size round: 4’ X 4’ – 6’ X 5’
Bale size square: All sizes. Over 6’ long requires optional platform extension
Weight Capacity: 1250kg
Bale Capacity: 1 bale
Unit weight: 800kg
Tractor size: 120hp +
Hydraulics required: 2 x double-acting, 30-60 litres/min, 2250-3000 psi
Loading: Snaplox patented self-loading system
Size (L x W x H): 2365 x 2648 x 1271mm
