HUSTLER Trailed Chainless Bale Processors
HUSTLER Trailed Chainless Bale Processors
Pull-type, Self-Loading, Chainless Round & Square Bale Feeder.
The Chainless trailed square and round bale feeders are self-loading, suitable for feeding out any bale, round or square, and it maximises feed use. Designed for medium to large operations. A Chainless feed out cart minimises feed waste by feeding out into narrow windrows to make the feed more accessible to animals and all but eliminate damage from hoof trampling, manure spoilage, and animals laying down on the feed. More efficient use of power, savings on machinery investment and faster bale feeding all add up to impressive fuel economy – made possible by the hydraulic drive system at the heart of every Hustler Chainless trailed bale processor.
| Chainless TE205 | |
| Bale Sizes Round: | All sizes up to 5’ X 6’ |
| Bale Sizes Square: | All sizes over 6’ long requires optional platform extension |
| Bale Weight: | Up to 1000kg ea |
| Unit Weight: | 1160kg |
| Hydraulics Required: | 2 x double-acting, 30-60 |
| Capacity: | 2 x bales (round or square) |
| Tynes: | 2 x Forged high tensile |
| Towing Eye: | 45mm swiveling forged, 12t rated |
| Axles: | 6 Stud, 60mm Square |
| Wheels: | 11.5/80R15.3 |
| Ground Clearance: | 443mm |
| Loading: | Self-Loading |
| Size (L x W x H): | 4467 x 2410 x 1669mm |

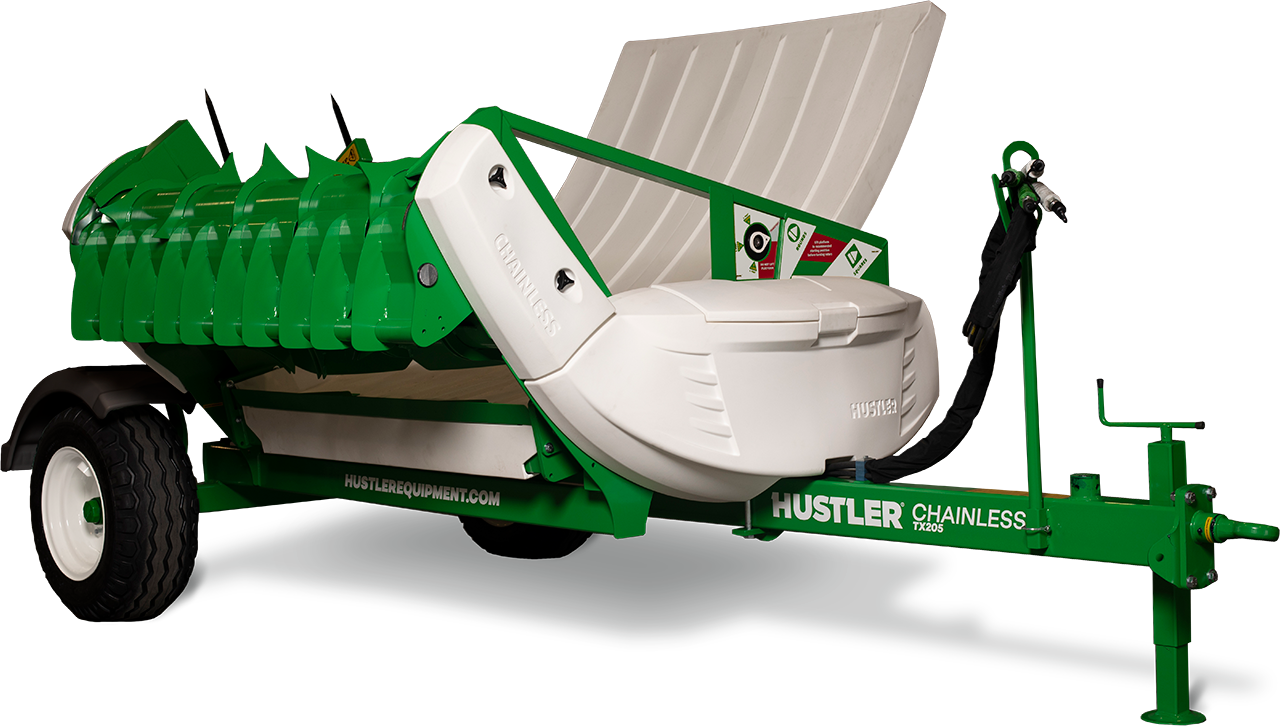

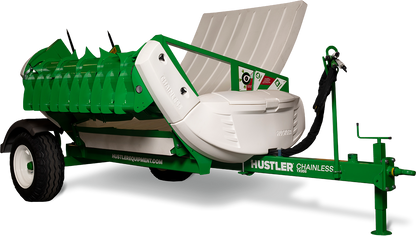

| Chainless TX205 | |
| Bale Sizes Round: | All sizes up to 5’ X 6’ |
| Bale Sizes Square: | All sizes. Over 6’ long requires optional platform extension |
| Bale Weight: | Up to 1500kg ea |
| Unit Weight: | 1180kg |
| Hydraulics Required: | 2 x double-acting, 30-60 litres/min, 2250-3000 psi |
| Capacity: | 2 x bales (round or square) |
| Tynes: | 2 x Forged high tensile |
| Towing Eye: | Adjustable height, 45mm swiveling forged, 12t rated |
| Axles: | 6 Stud, 60mm Square |
| Wheels: | 11.5/80-R15.3 |
| Ground Clearance: | 443mm |
| Loading | Self-Loading |
| Size (L x W x H): | 4467 x 2410 x 1669mm |
