STEWART VT-6100 – Versatile Tipping Trailer
- 20,000kg Load Capacity
- 6100mm (L) x 2700mm (W) Wide Body Flat Top
- 4mm Hardox Floor with Full-Length Rope Rail
- 200 x 150mm RHS Chassis & Tipper Chassis
- Twin 4.25" Dia Tipping Rams
- Sprung Drawbar with Safety Chain Lugs
- 2-Speed Manual Jack Stand
- 40mm Swivel Tow Eye
- Tandem Granning 125mm - 10 Stud Axles
- Granning Overslung Spring Suspension
- Hydraulic Brakes
- 560/60 x R22.5 Flotation Tyres
- Rear LED Flasher & Full LED Road Light Kit
- Shot Blasted & Finished in Flex Paint
- Body Prop
Options:
- Plastic Toolbox
- Weight Cells
- Air Brakes
Why Choose the VT5500 & VT6100?
Designed in Scotland for Australian conditions, the VT5500 (5.5m) and VT6100 (6.1m) were developed based on real feedback from Farmers. Farmers wanted a long deck, a fixed headboard, and the ability to add a bale extension, gravel sides, and a silage bin—Stewart made it happen.
VT Trailer Configurations
The VT series offers four versatile configurations to handle various farm and construction tasks:

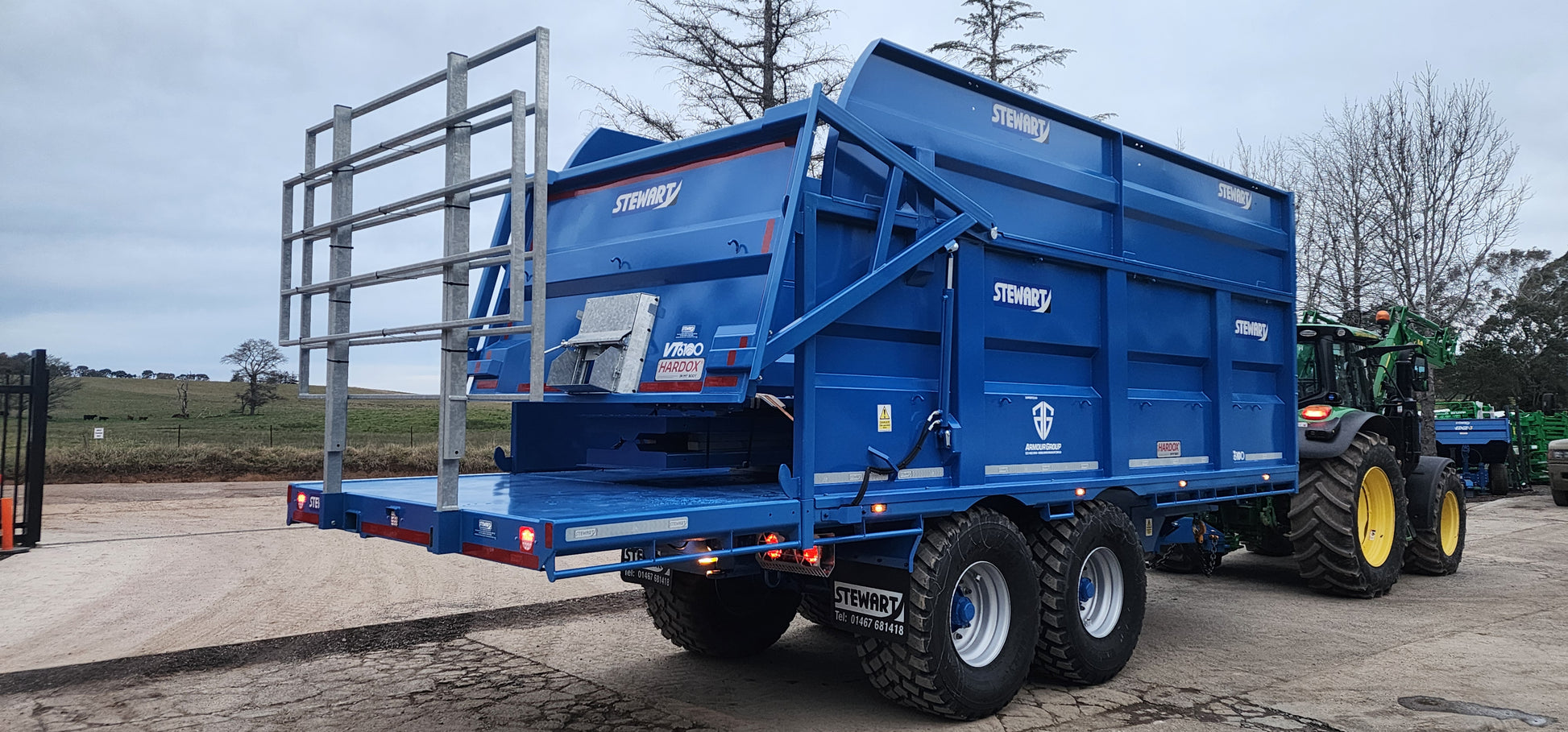

Flattop with Bale Extension:
A 1350mm bale extension slides into the rear, making it ideal for transporting bales or serving as an IBC shuttle trailer for spraying.
Gravel Trailer:

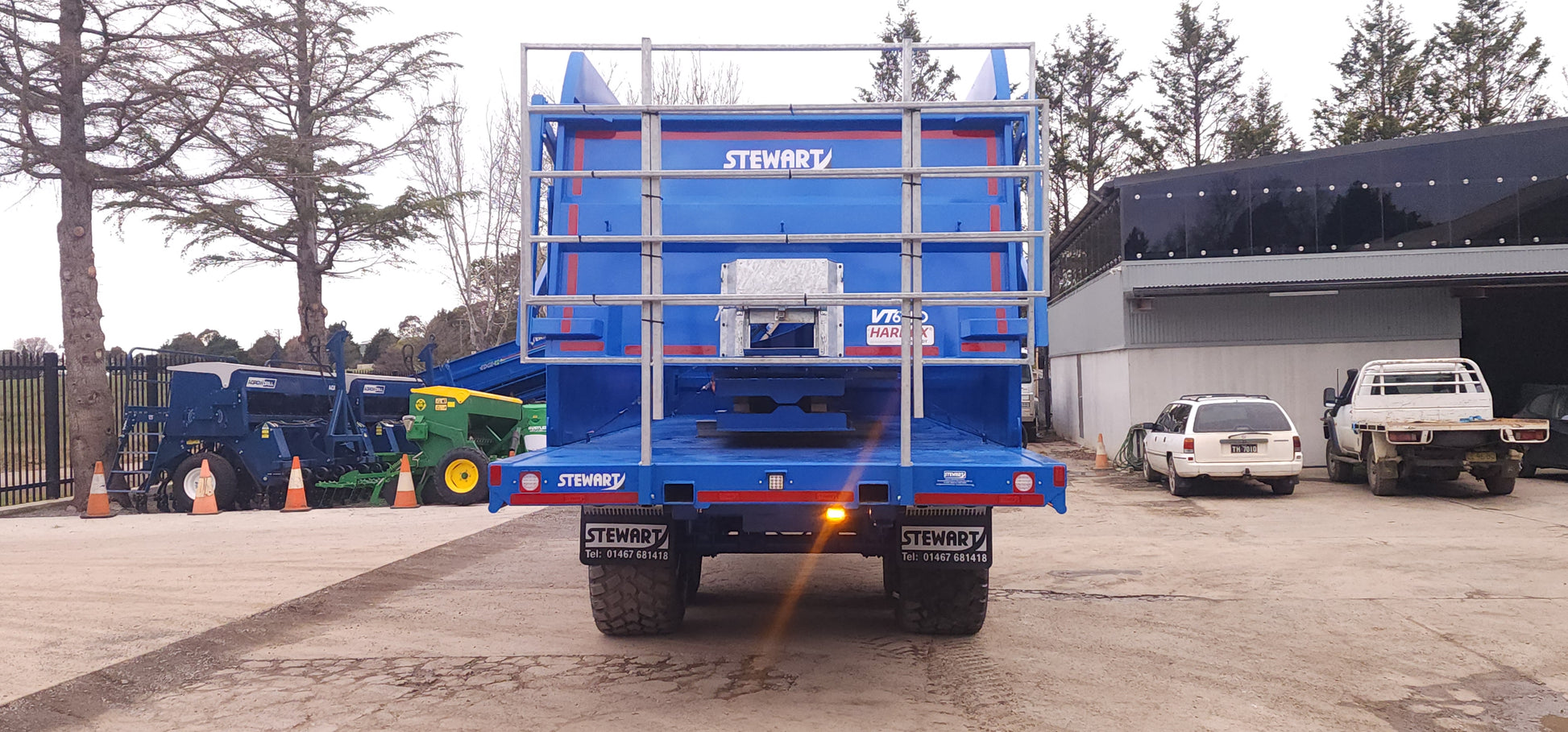

Fitted with bolt-on 750mm HARDOX sides and a hydraulic up-and-over tailgate, this setup is perfect for farm maintenance and construction projects.

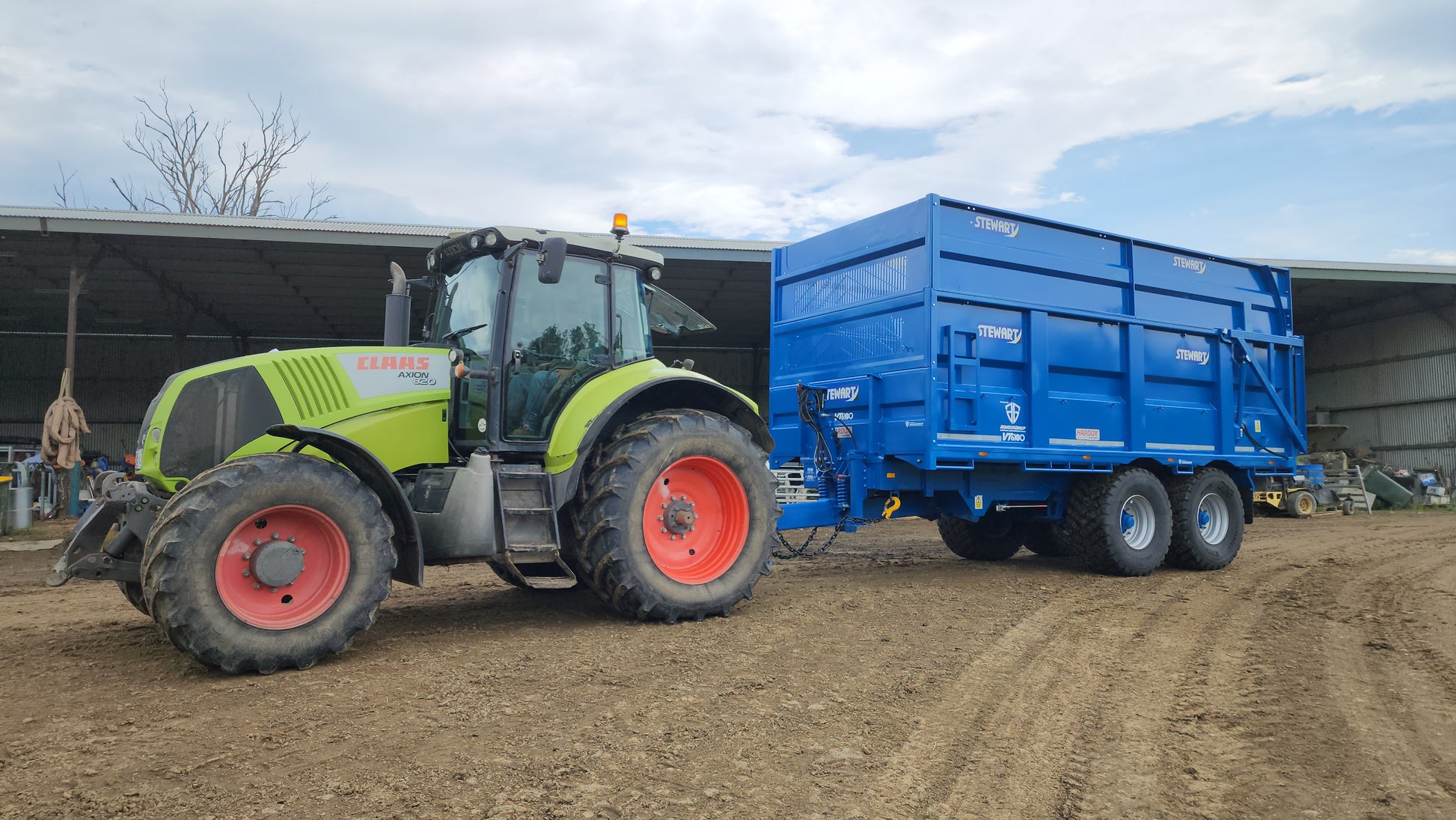

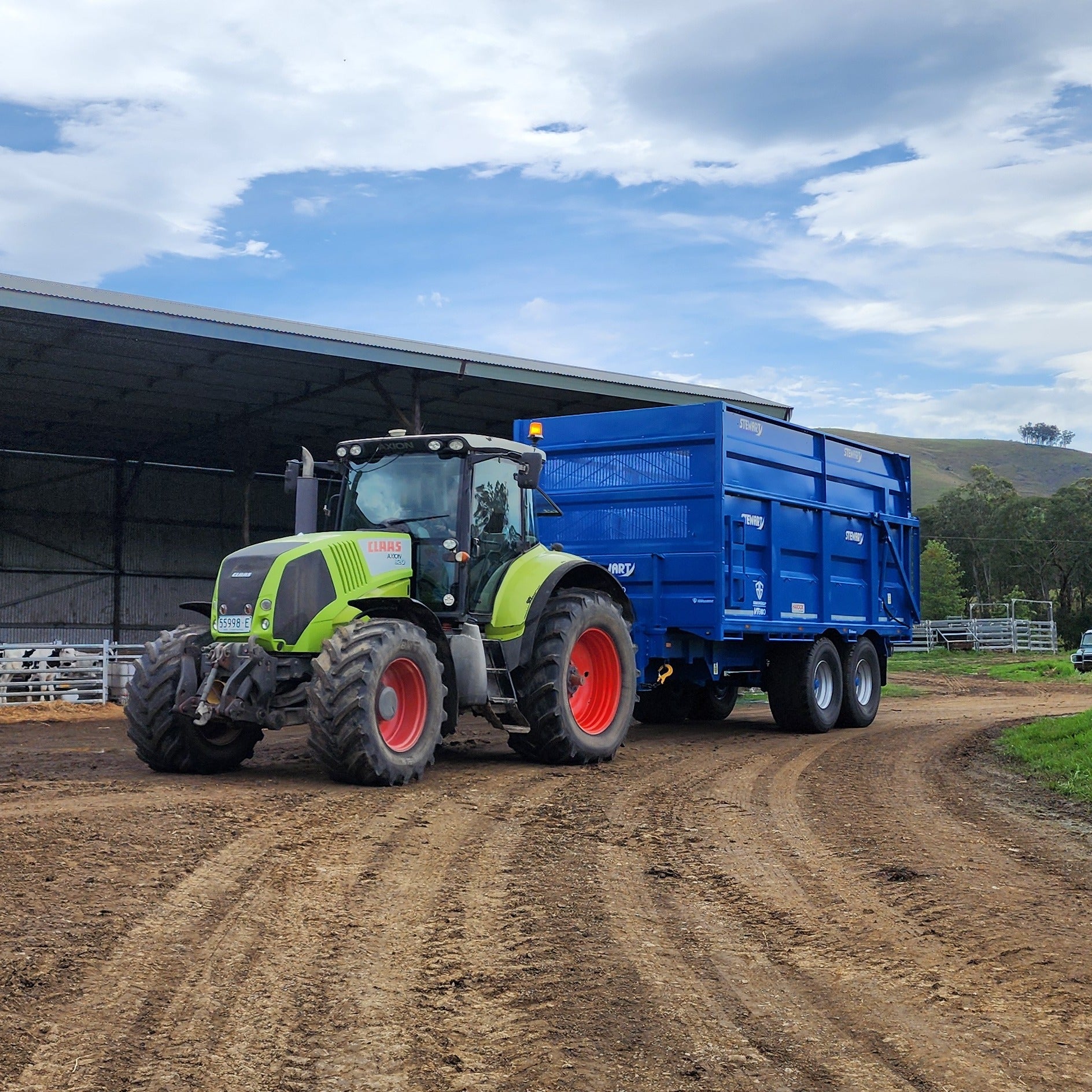

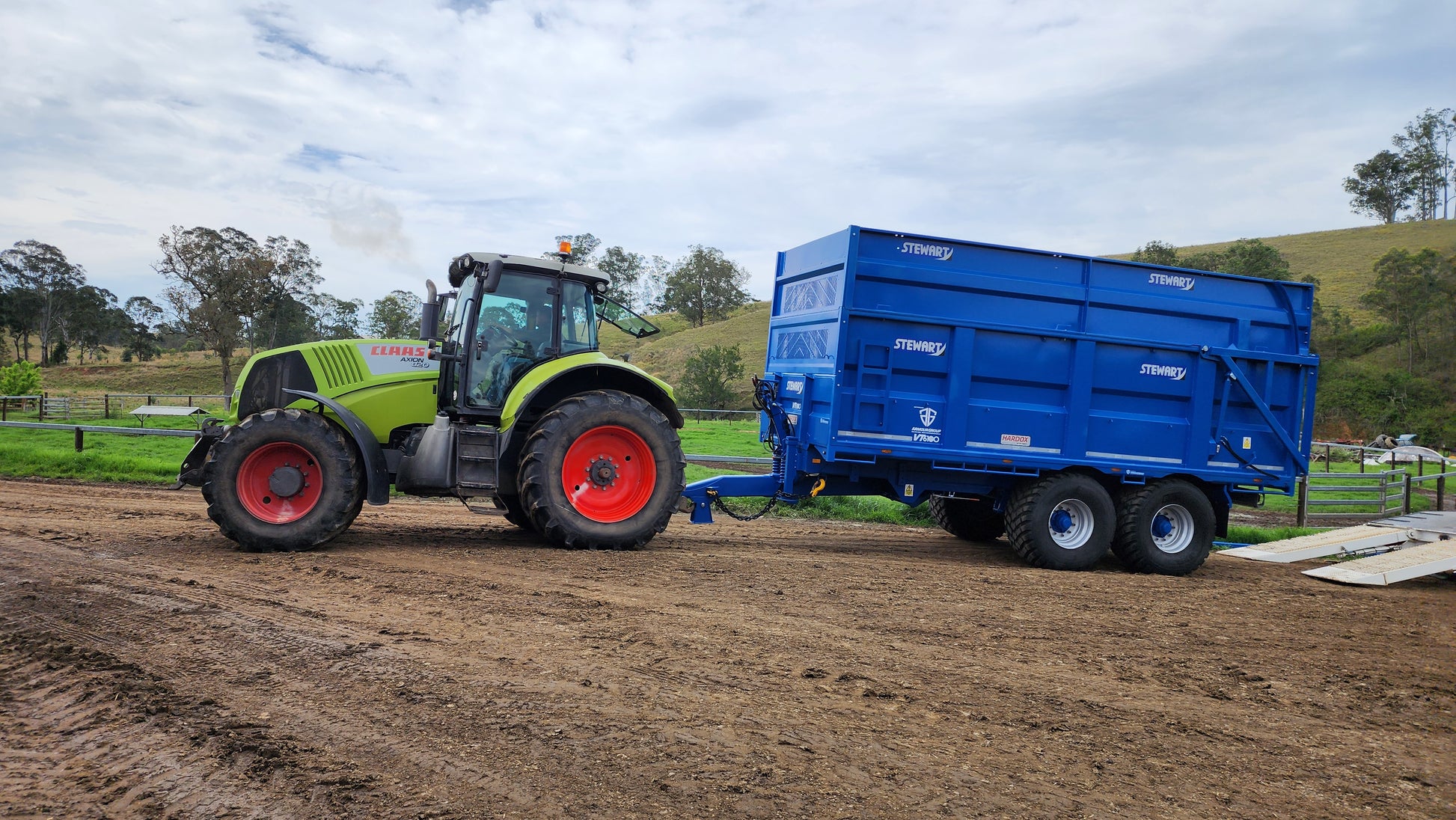

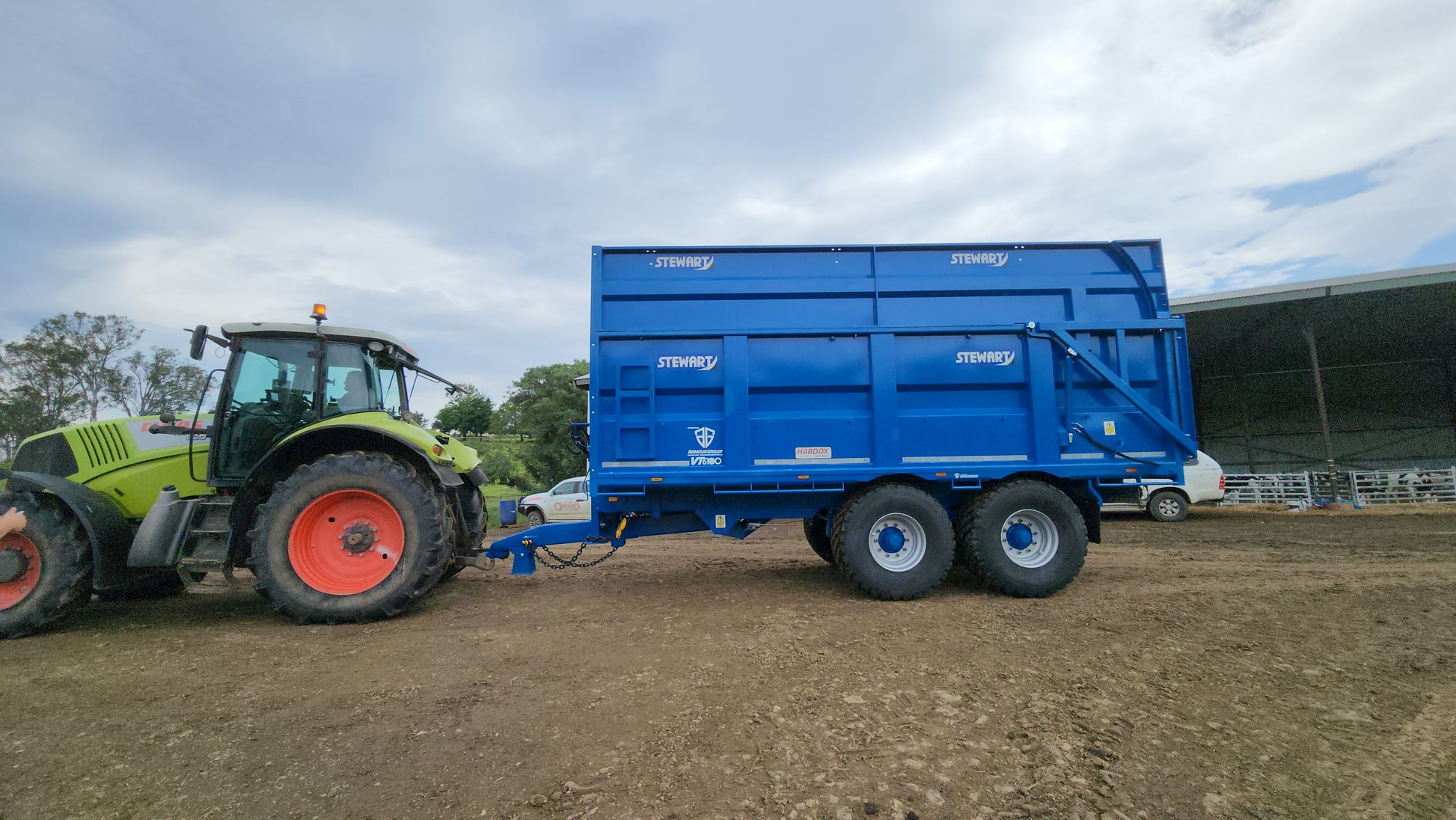

Grain Trailer:
With 1500mm steel sides and a hydraulic up-and-over tailgate, this trailer provides 25m³ of capacity—perfect for grain cleaning, filling seeders, and loading directly from harvesters.

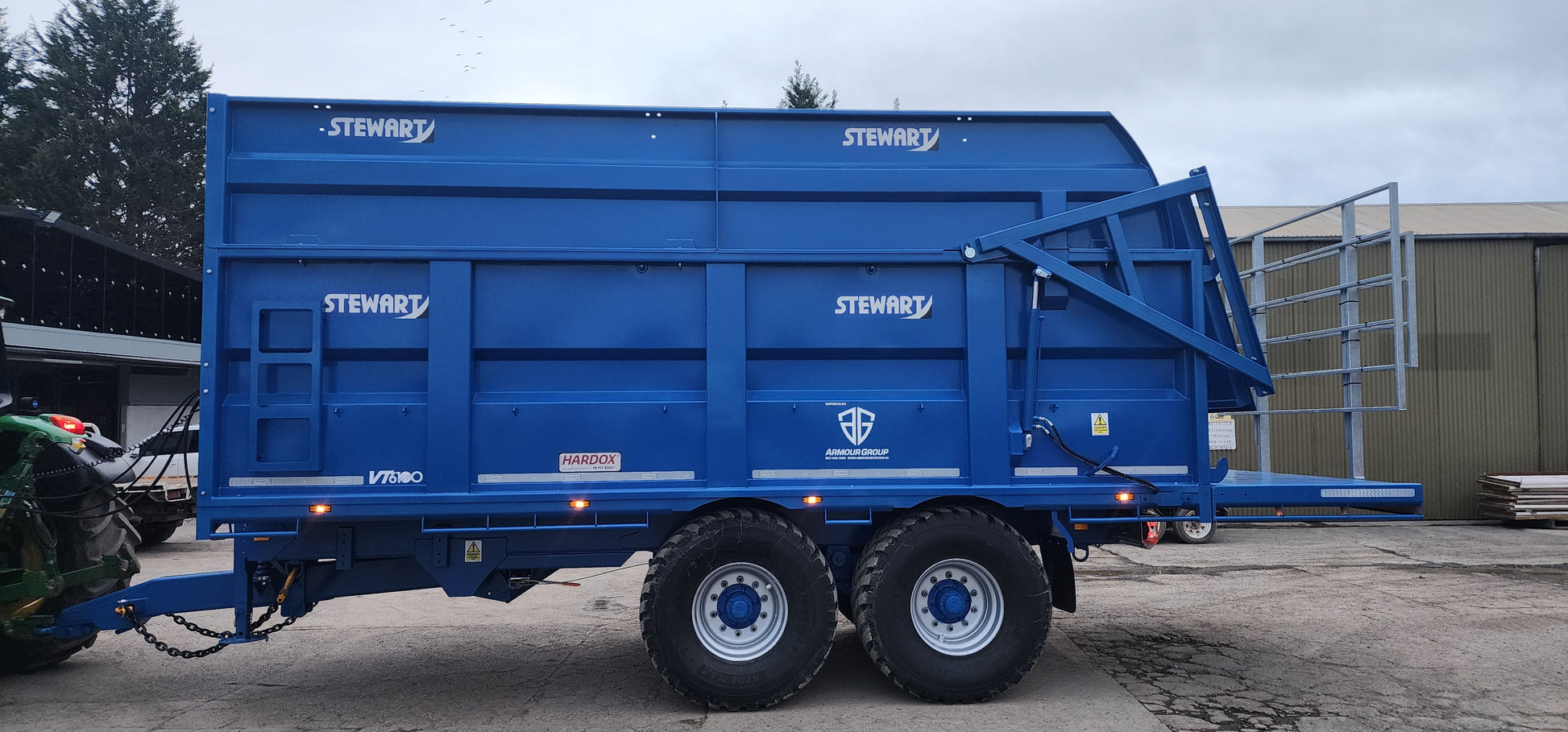

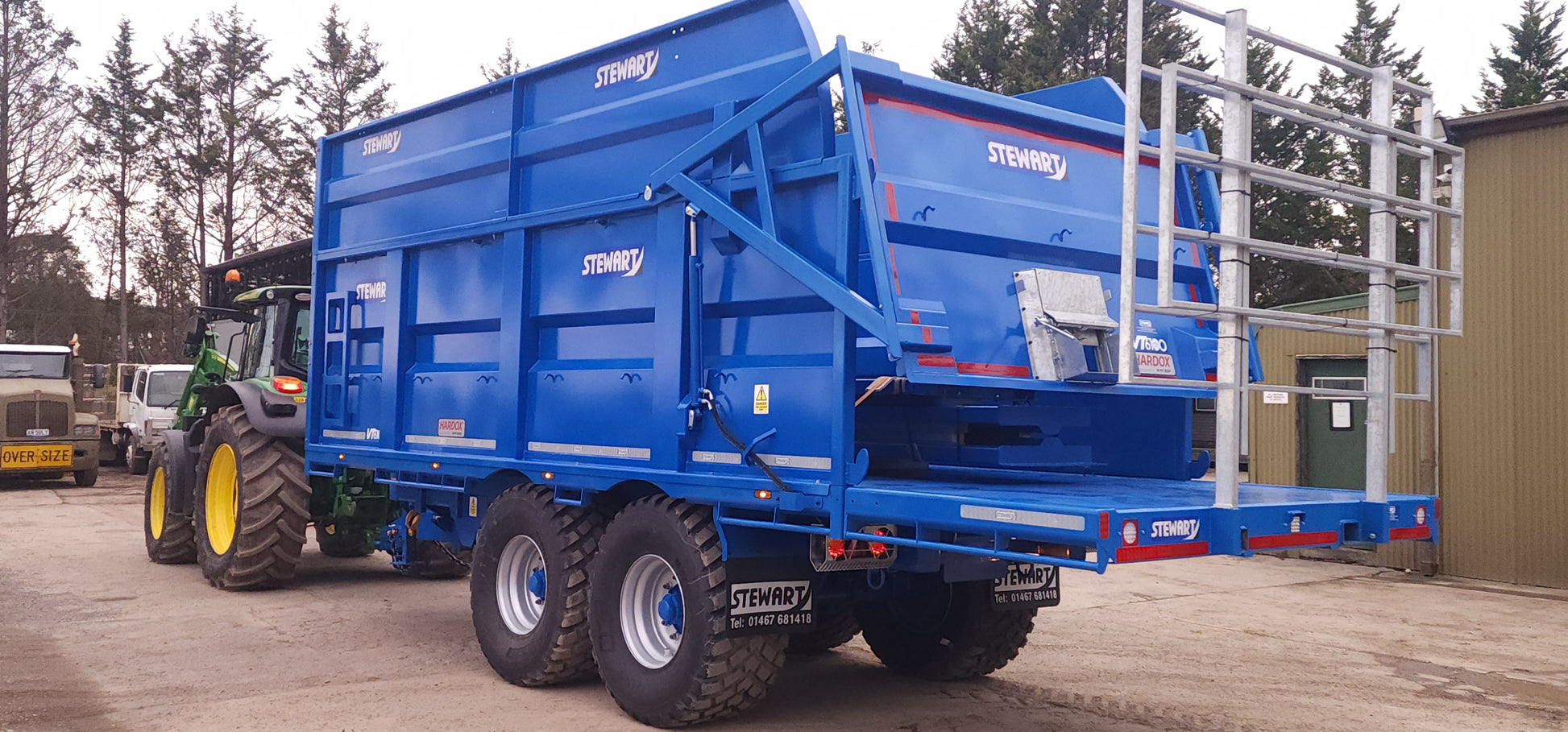

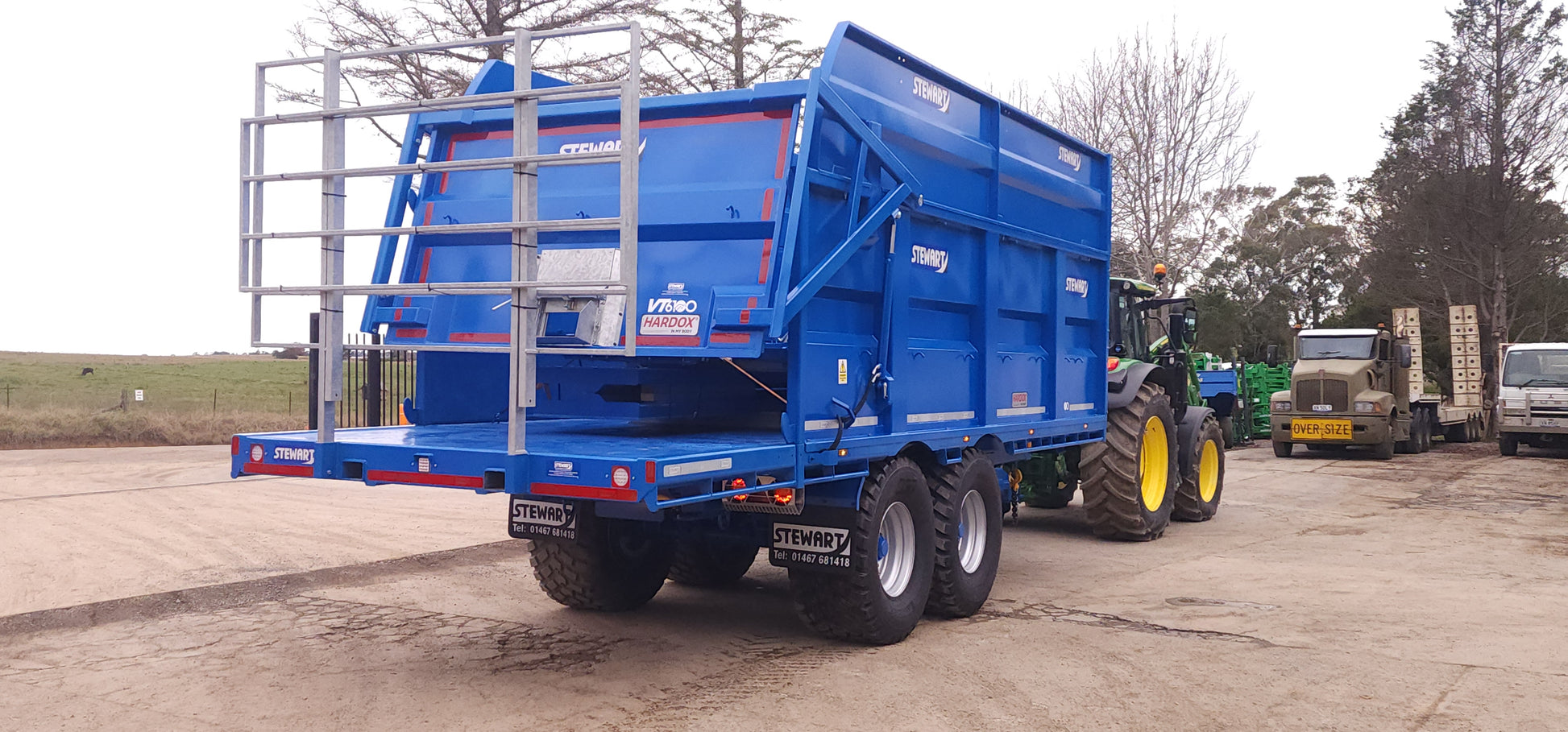

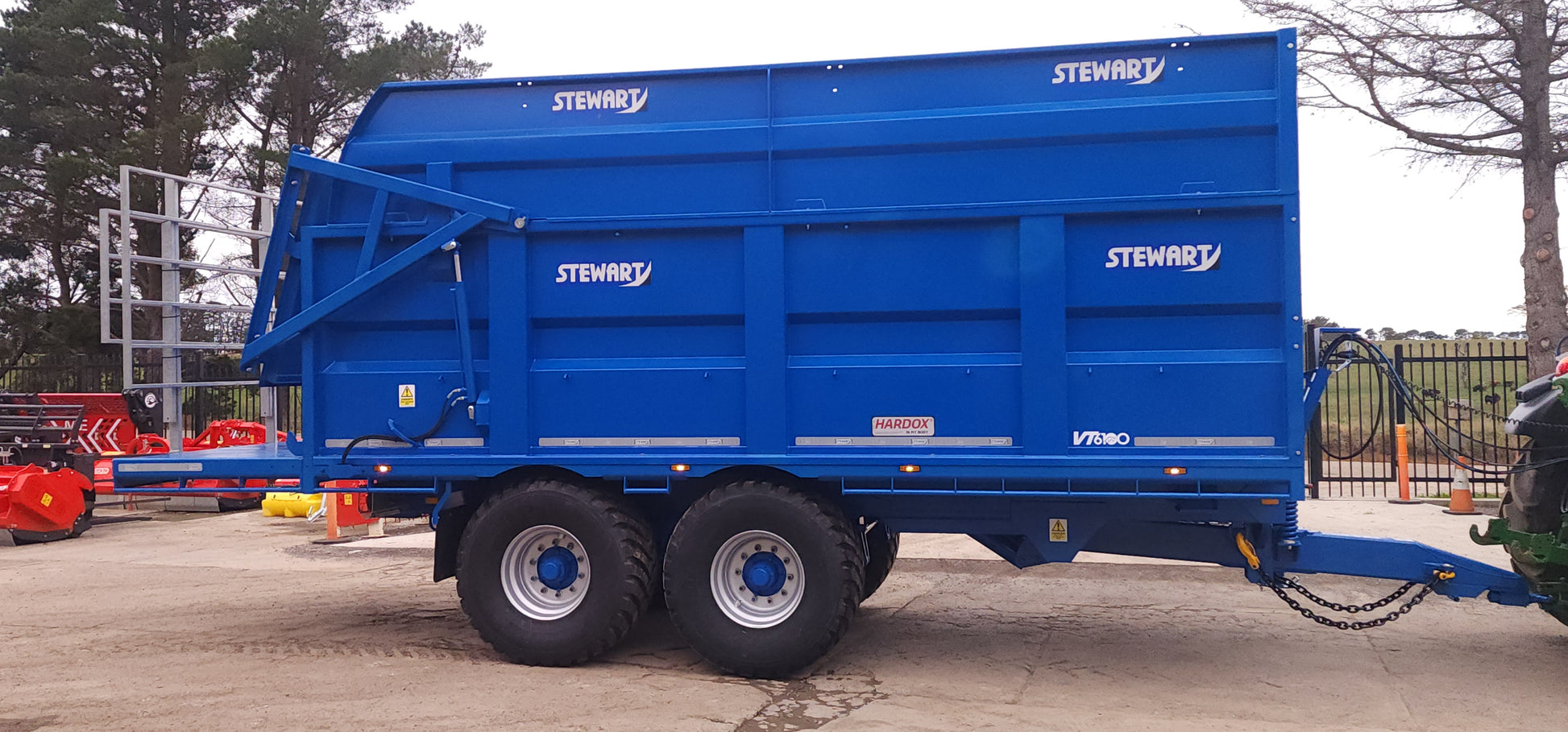

Silage Trailer:
For silage season, a 900mm extension is added to the grain sides, boosting capacity for grass or maize silage.
Built Tough for Any Job
The VT5500/VT6100 lives up to Stewart’s motto: “Bigger, Stronger, Tougher.”
- Narrow sloping drawbar for tight turns

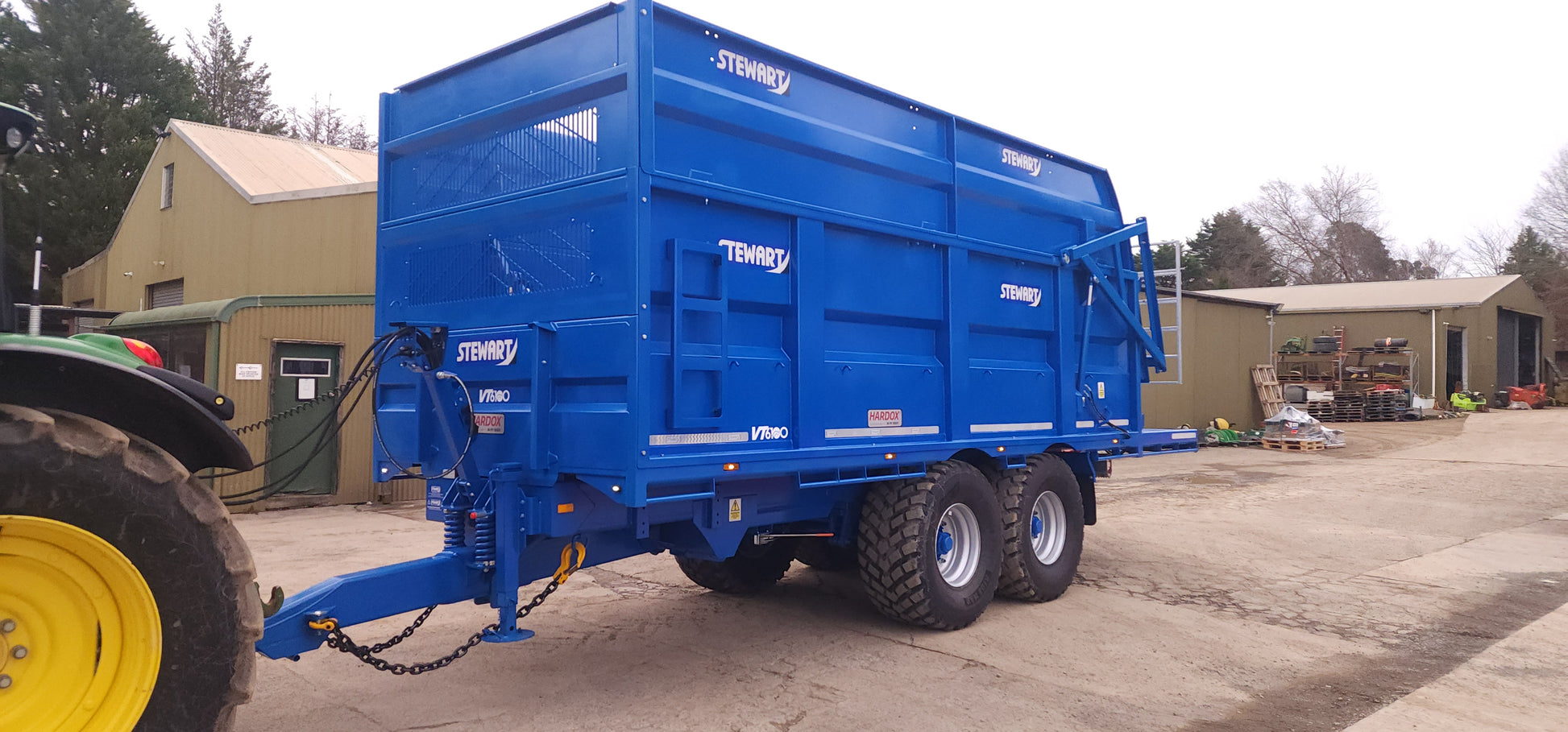

- Sprung drawbar with large springs absorbs shocks and improves ride comfort

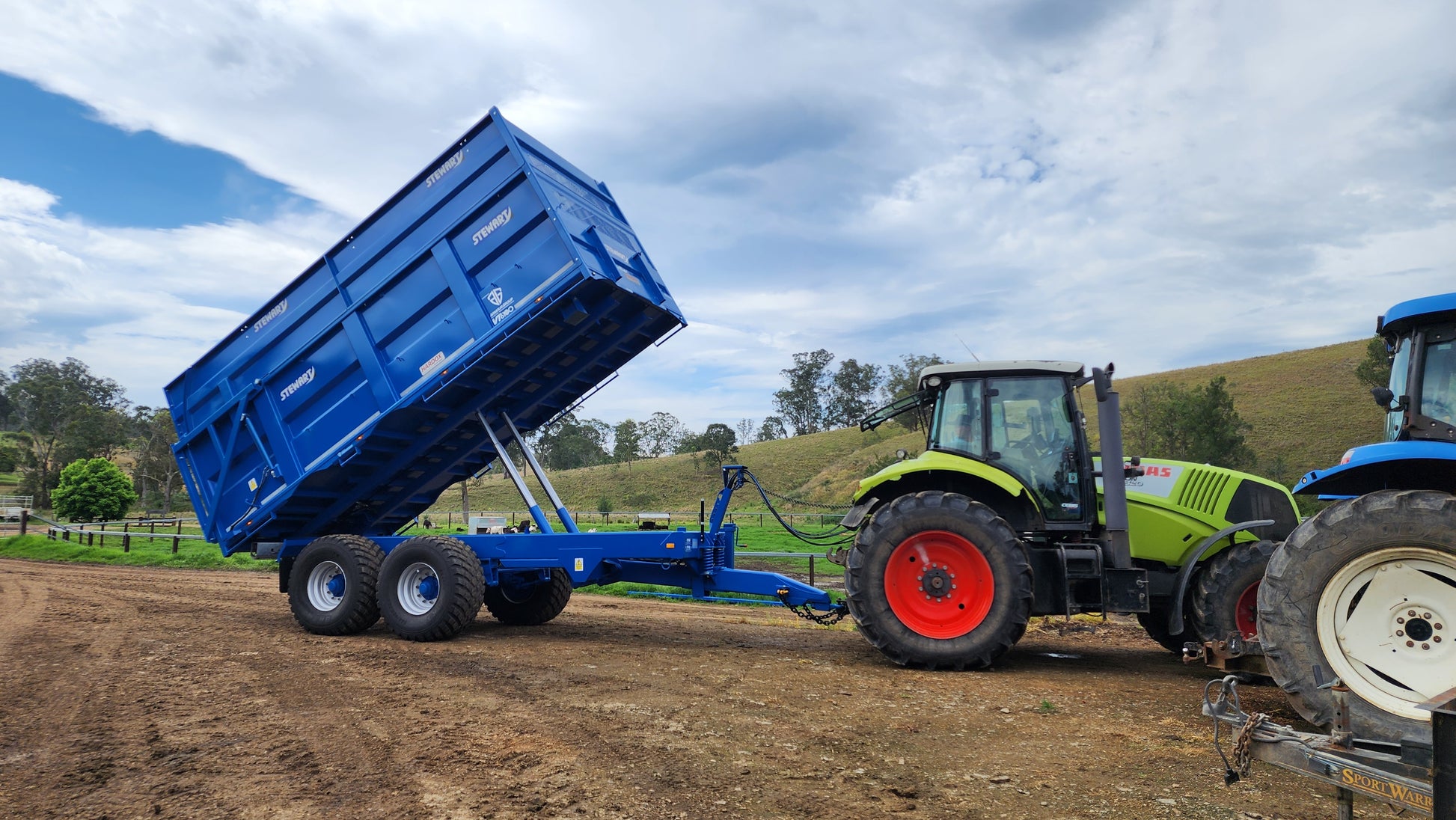

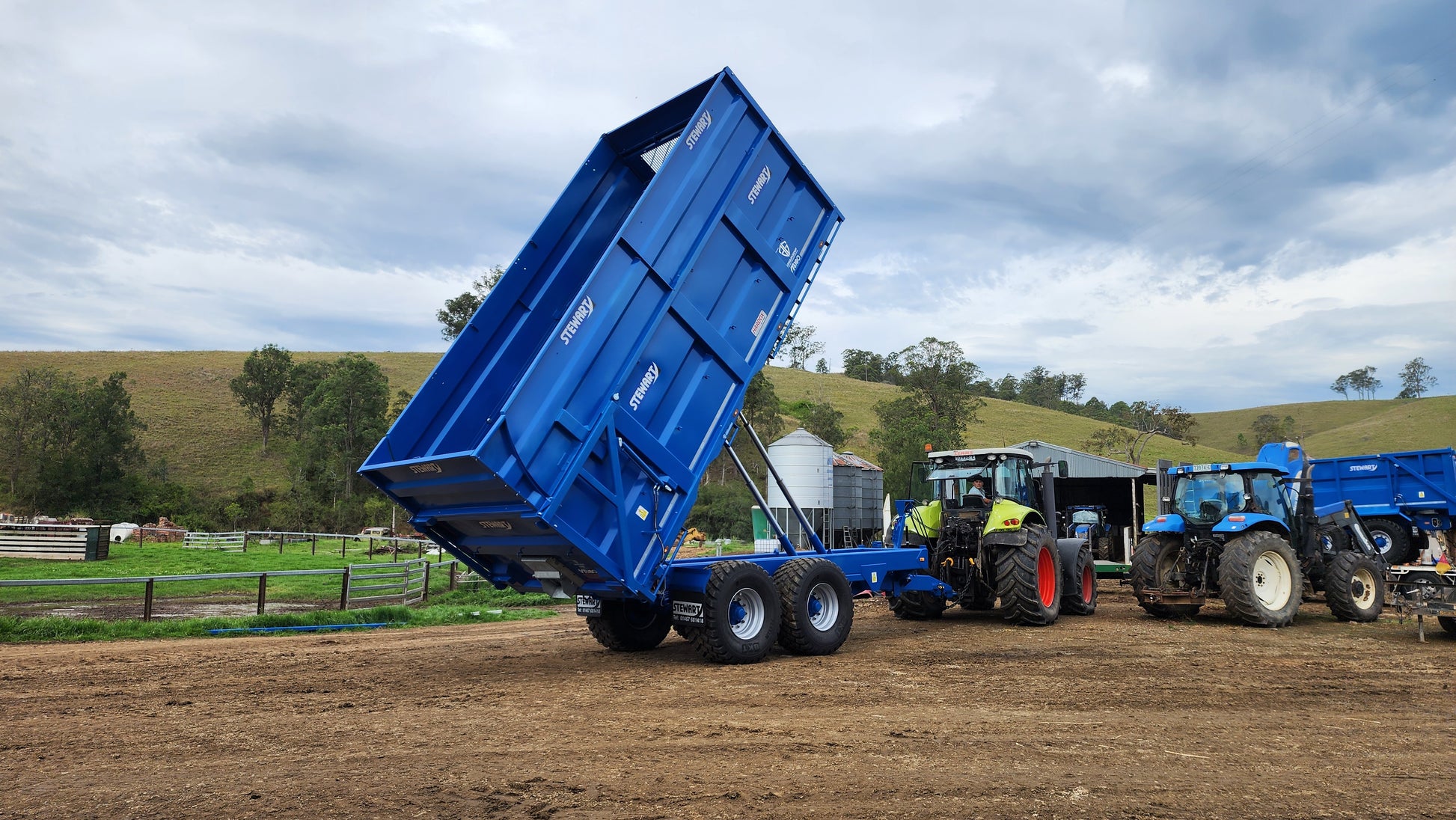

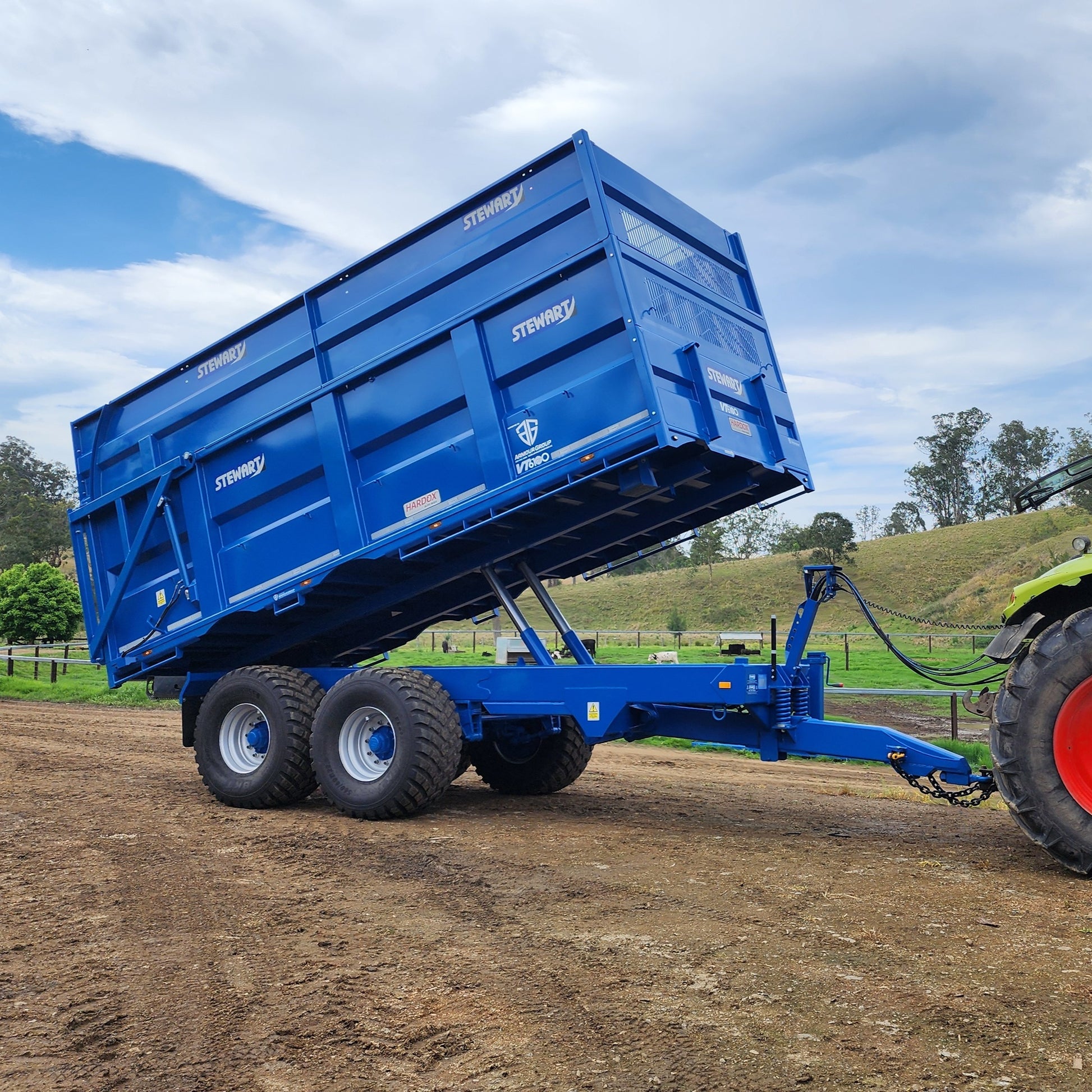

- Interlocking tipping chassis lowers the center of gravity for stability on hills
- Hardox steel deck reinforced with cross members to prevent dents
- Removable Hardox gravel sides with a hydraulic high-lift tailgate handle up to 16 tons
- Full chassis design
- hydraulic dual-axle brakes
- LED road lighting
- 2-pack flex paint finish for durability
Stewart Trailers are designed to handle anything the farm throws at them—built strong to keep you moving.
